3phase 16A 11KW EV Charger with Red CEE Power Plug Type 2 EV Charging Cable

Short Description:

Rated current: 6A / 8A / 10A/ 13A / 16A ( Optional )

Delay Charging: 1-12hour

Operating voltage: 110V~250V

AC Insulation resisitance:>1000MΩ

Therminal temperature rise:<50K

Withstand voltage:2000V

Working temperature: -30°C ~+50°C

Contact Resistance: 0.5m Max


Product Detail

Product Tags

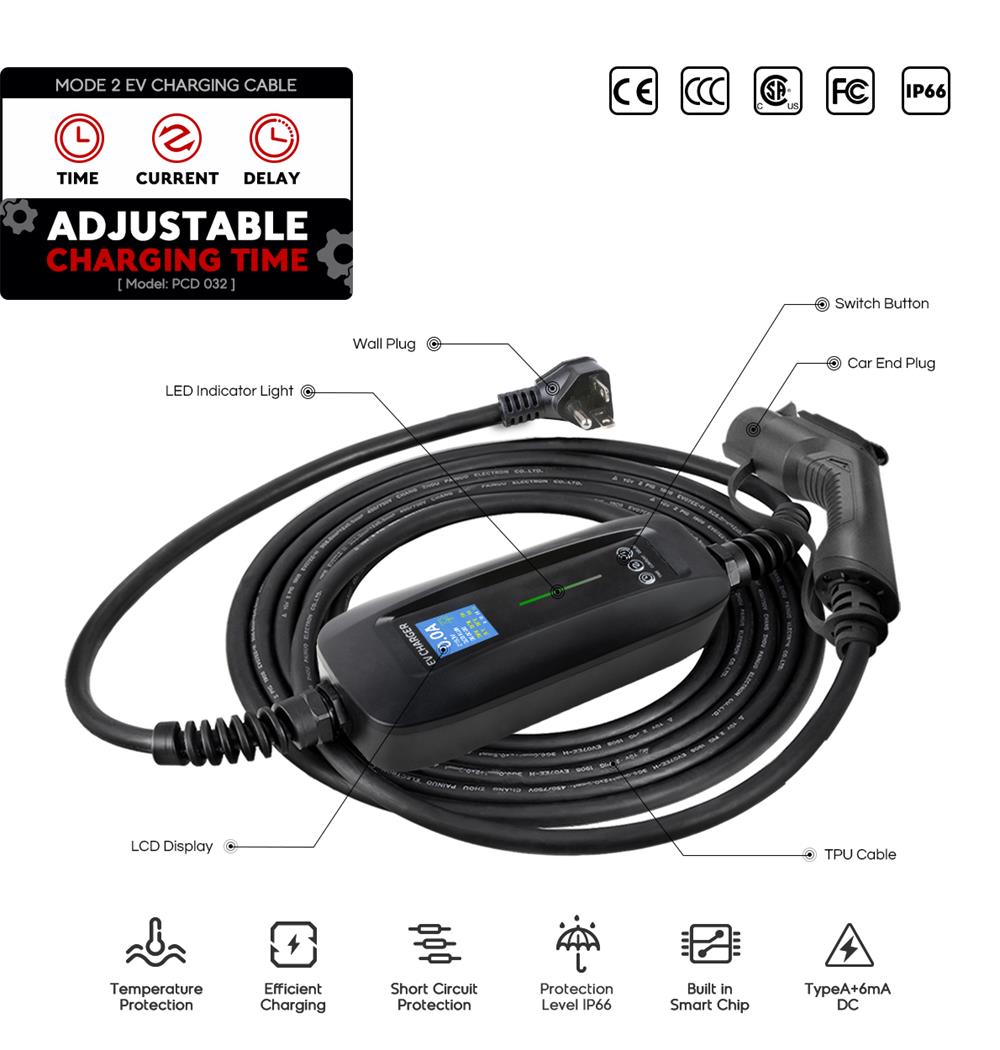

Portable-Electric-Vehicle1

CORE ADVANTAGE

High compatibility
High speed charging
Equipped Type A+6ma DC filter
Automatically Intelligent Repair
Automatically restart function
Over-temperature protection
Full link temperature control system

EV PLUG

Integrated design
Long working Life
Good conductivity
Self filter the surface impurities
Silver plating design of terminals
Real-time temperature monitoring
Heat Sensor guarantee the charging safety

BOX BODY
LCD display
IK10 Rugged enclosure
Higher waterproof performance
IP66, rolling-resistance system
TPU CABLE
Comfortable to touch
Durable and preservative
EU standard ,Halogon-free
High and cold temperature resistance

Portable-Electric-Vehicle2

The portable electric car charger belongs to the LEVEL 2 AC charger, and the charging power is generally 3.6kW-22kW. In order to prevent potential safety hazards due to incorrect use, please read the equipment manual carefully before use. Do not charge in places that do not meet the charging conditions. Ensure that the power supply and wiring are in a normal state before use.

☆ Do not immerse the device in water.
☆ Do not use it in an environment that exceeds the operating temperature.
☆ Do not put your fingers into the car end plug when the device is connected to the power source.
☆ Do not use when the equipment and cables are found to be damaged.
☆ Do not use the device for charging other than electric vehicles.
☆ When using the adapter (10A to 16A), it is prohibited to adjust the charging device to 16A mode, Prevent safety hazards!
☆ The precautions for use include but are not limited to those listed above.
☆ If you are not sure whether it will cause safety hazards, please contact after-sales service in time.

Portable-Electric-Vehicle3
Item Mode 2 EV Charger Cable
Product Mode MIDA-EVSE-PA16 MIDA-EVSE-PE16
Rated Current 8A / 10A / 13A / 16A ( Optional )
Rated Power Max 3.6KW
Operation Voltage AC 110V ~250 V
Rate Frequency 50Hz/60Hz
Withstand Voltage 2000V
Contact Resistance 0.5mΩ Max
Terminal Temperature Rise <50K
Shell Material ABS and PC Flame Retardant Grade UL94 V-0
Mechanical Life No-Load Plug In / Pull Out >10000 Times
Operating Temperature -25°C ~ +55°C
Storage Temperature -40°C ~ +80°C
Protection Degree IP65
EV Control Box Size 248mm (L) X 104mm (W) X 47mm (H)
Standard IEC 62752 , IEC 61851
Certification TUV,CE Approved
Protection 1.Over and under frequency protection
3.Leakage Current Protection (restart recover)
5.Overload protection (self-checking recover)
7.Over voltage and under-voltage protection
2. Over Current Protection
4. Over Temperature Protection
6. Ground Protection and Short circuit protection
Portable-Electric-Vehicle4
Portable-Electric-Vehicle5

☆  Convenient Control

TIME: Press the button once means it will charge 1 hour, press 9 times at most.
CURRENT: It can switch 5 current (6A/8A/10A/13A/16A) to charge your car.
DELAY:Press once to delay for 1 hour, you can press 9 times at most.
☆  LED Display

LED display could show the real-time charging status, including time, voltage, current, power and temperature.

☆  Adjustable Curren

Customers could adjust different current as their request.Also the charger which equipped the adaptor could automatically identify different plug types and control the current upper limit to keep safe.

☆  Type B (Type A + DC 6mA)

The special "self-clean" design. The impurities on the surface of the pins can be removed in each plug-in process. It could also effectively reducing the generation of the electric sparks.

☆  Full Link Temperature Monitoring System

Besen's original "full link" temperature control system can protect the temperature of 75 ° and cut off the current for 0.2S when temperature over 75°.

☆  Automatically Intelligent Repair

The smart chip is equipped to automatically repair common charging errors. It could also restart the power to protect the device from stopping charge caused by voltage fluctuation.

☆  IP66, Rolling-resistance System

Rugged shell which could resist the rolling and crash of the car.
IP66 ensure the perfect work outdoors in any environment including rain and snow.

  Temperature Monitoring

Real-time monitor is equipped to detect the temperature of the car-end and the wall-end plugs.
Once the temperature is detected above 80℃, the current will be cut off immediately. When the temperature returns below 50℃, charging will resume off.

☆  Battery Protection

Accurate monitoring of PWM signal changes, Effective repair of capacitor units, Maintenance of battery life.

☆  High Compatibility

Fully compatible with all EV in the market.

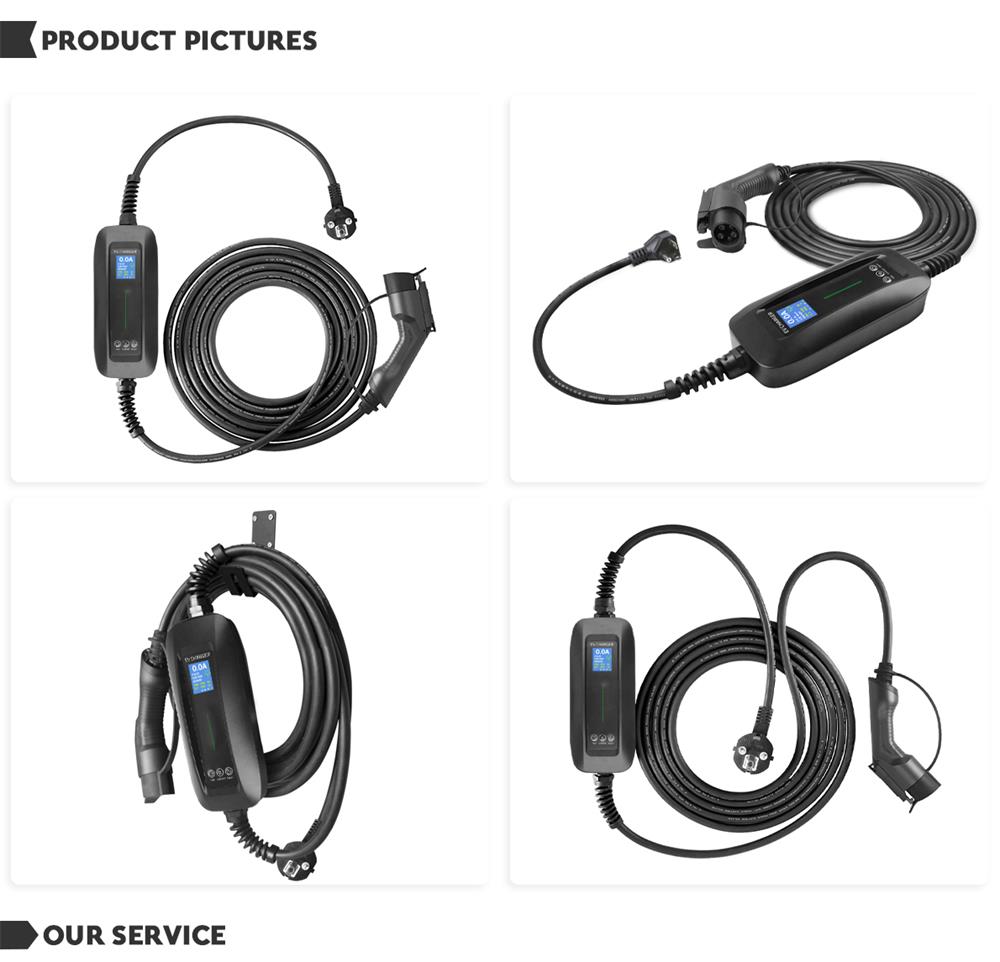

Portable-Electric-Vehicle6

CUSTOMER SERVICE

☆  We can provide customers with professional product advice and purchase options.
☆  All emails will be responded within 24 hours during working days.
☆  We have online customer service in English, French, German and Spanish. You can communicate with ease, or contact us through email anytime.
☆  All customers will get one-on-one service.

DELIVERY TIME
☆  We have warehouses throughout Europe and North America.
☆  Samples or test orders can be delivered within 2-5 working days.
☆  Orders in standard products above 100pcs could be delivered within 7-15 working days.
☆  Orders that require customization could be produced within 20-30 working days.

CUSTOMIZED SERVICE
☆  We provide flexible customized services with our abundant experiences in kinds of OEM and ODM projects.
☆  OEM includes color, length, logo, packaging, etc.
☆  ODM includes product appearance design, function setting, new product development, etc.
☆  MOQ is depend on different customized requests.

THE AGENCY POLICY
☆  Please contact our sales department for more details.

AFTER SALE SERVICE
☆  The warranty of all our products is one year. The specific after-sale plan will be free for replacement or charging a certain maintenance cost according to the specific situations.
☆  However, according to the feedback from markets, we seldom have after-sale problems because strict product inspections are carried out before leaving the factory. And all of our products are certificated by top testing institutions such as CE from Europe and CSA from Canada. Providing safe and guaranteed products is always one of our greatest strengths.
