240KW DC Fast Charging Station With dual Gun DC Super Fast Charger

Short Description:

Product category: DC Charger with CCS/GBT/CHAdeMO connectors

Connector Stadard: GBT
Output power: 600KW
Max output current(A): 960A
Frequency:  55Hz±10%
Power factor:  ≥0.99

Product Detail

Product Tags

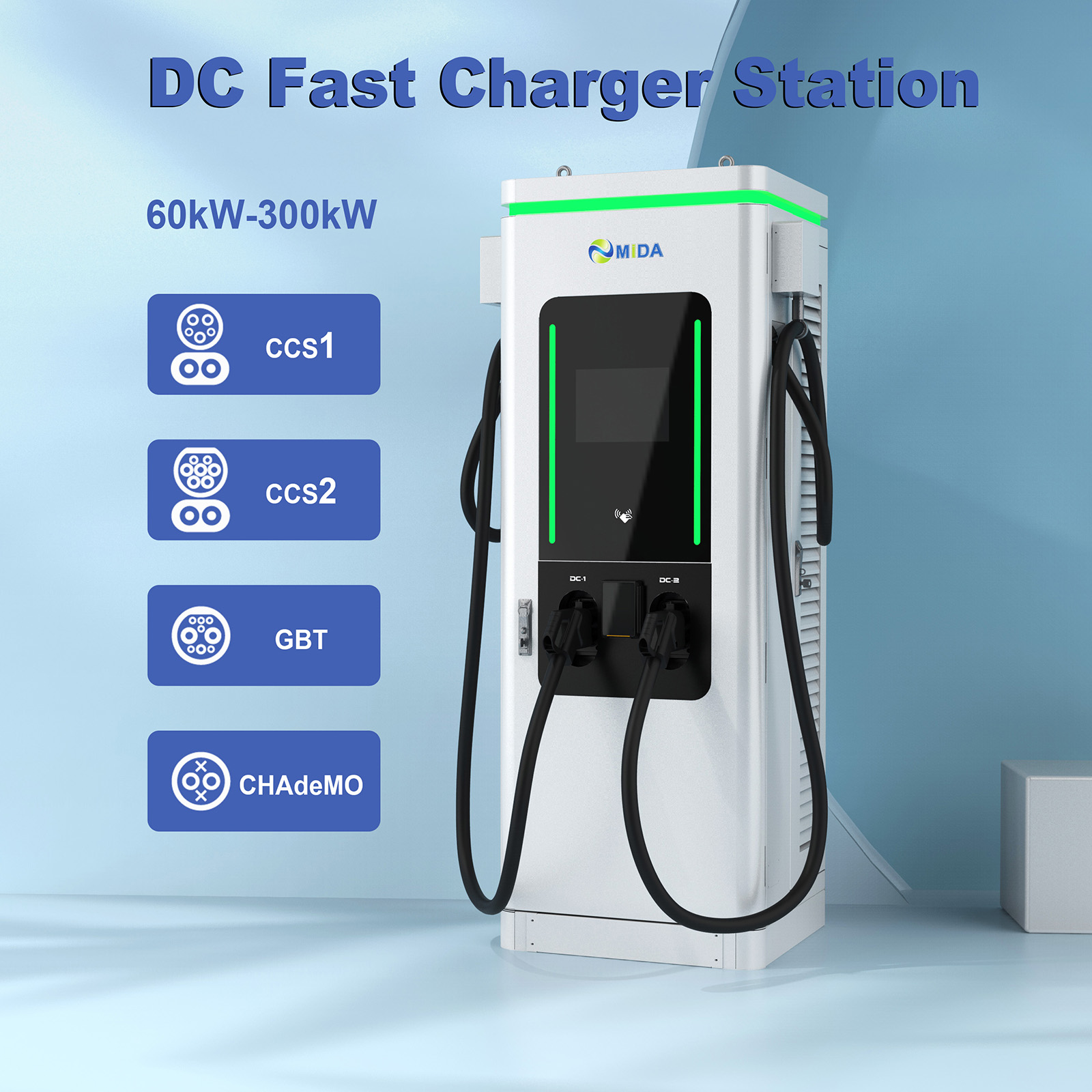

240KW DC Fast Charging Station With dual Gun DC Super Fast Charger

This charging pile is an integrated fast charging device for electric vehicles. It integrates functions such as charging modules, charging control, metering and billing, and communication. It can flexibly control charging according to the vehicle’s charging needs and meet the requirements of DC fast charging in multiple scenarios. This design significantly reduces charging time and is ideal for public charging stations and highway service areas ‌. It is compatible with European standards, Chinese standards and different standards, meeting the testing needs of charging piles in different regions around the world, and providing strong support for enterprises to expand their international markets

240kw dc charging station

Machine

Dimension(W*D*H)

700mm*700mm*1800mm

Class of protection

IP54(Outdoors)

Equipment weight

About:390kg

Cooling

Forced air cooling

Module weight

About:17kg

Cable length

5m(Customizable)

Installation type

Floor type

Input

Ac input voltage

AC400V±10%

Grid frequency

45Hz to 65Hz

Phase lines

L1、L2、L3、N、PE

Power factor

≥0.98

Current:THD

<5%

Output

Output power

DC240KW

Efficiency

≥95%

Output voltage

DC150V to 1000V

Measure

Dc meter

Output current

Single gun:DC0 to 300A

Environment

Humidness

5% to 95%

Altitude

≤2000m

Storage TEMP

-40℃ to +70℃

Operating TEMP

-30℃ to 50℃ 50℃ to 70℃ Derated output)

Screen

Reveal

10in Display

Scram

Press to stop

Starting mode

Plug and charge, swipe card, scan code (optional)

Billing mode

Automatic charging fixed power fixed amount fixed time (optional)
