32A Level 2 Portable ev Charger Type 1 plug with Blue CEE plug Electric Car Charger

Short Description:

Rated current: 10A / 16A / 20A/ 24A / 32A ( Optional )
Operating voltage: 110V~250V AC
Insulation resisitance:>1000MΩ
Therminal temperature rise:<50K
Withstand voltage:2000V
Working temperature: -30°C ~+50°C
Contact impedance: 0.5m Max


Product Detail

Product Tags

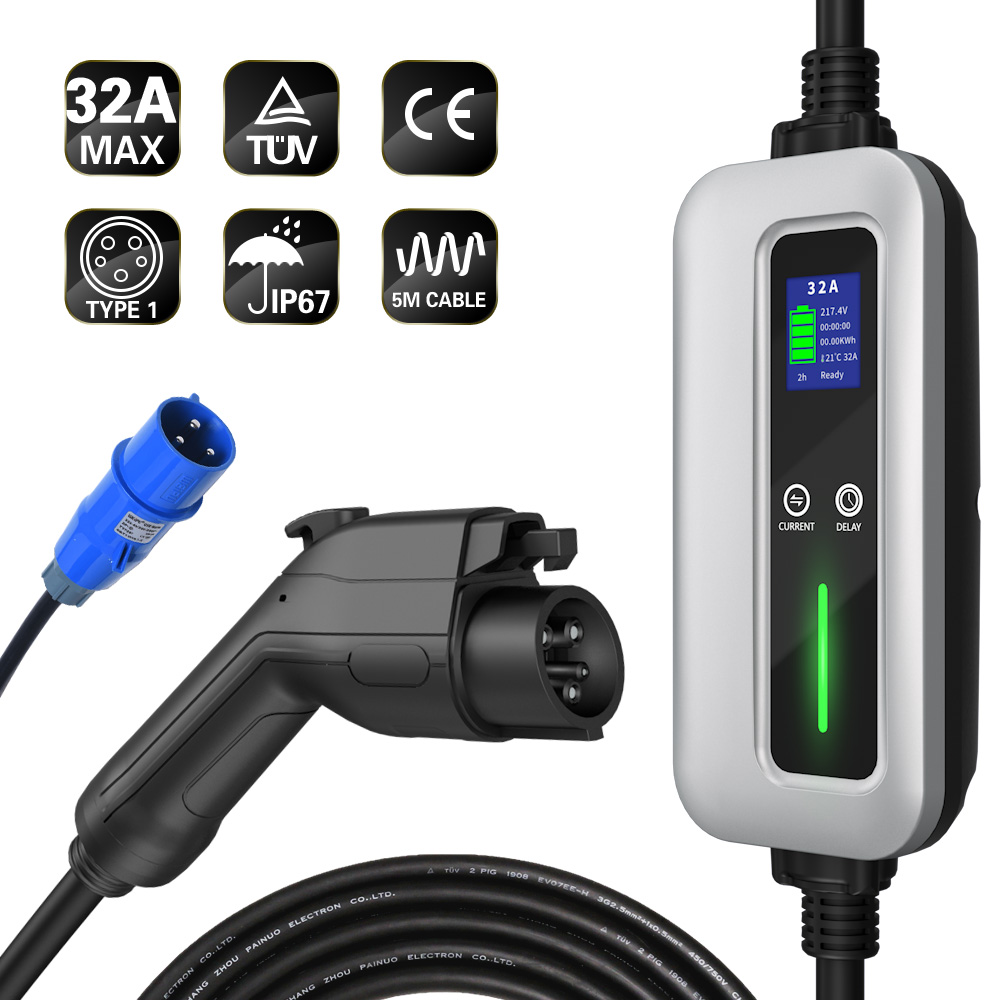

32A Level 2 Portable ev Charger Type 1 plug with Blue CEE plug Electric Car Charger

32A CEE EV Charger Type 1

EV Charging Box IEC 62752  ,  IEC 61851 Standard
Power Plug EU Standard
Rate Current 6A ,8A ,10A ,13A(3Pin UK plug)                     3.2KW
Rate Current 6A ,8A ,10A ,13A,16A (EU Schuko plug)        3.6KW
Rate Current 10A ,16A ,20A ,24A,32A (Blue 3pin CEE plug)  7.2KW
Input Voltage 220V/50Hz
Waterproof Rating IP67
Operating Temperature -25°C ~ +55°C
Storage Temperature -40°C ~ +80°C
LCD Display Temperature, Charging Time, Actual Current, Actual Voltage, Actual Charging Power

Delay Time

New Function Delayed Charging (1~12)+ Current Switching
Control Box Dimensions 220mm (L) X 100mm (W) X 56mm (H)
Cable Length 5 Meter
Certification TUV,CE ,UKCA,FCC Certificate
Protection 1.Leakage Current Protection                2. Over Current Protection

3.Over Voltage Protection                      4. Under Voltage Protection

5.Over Temperature Protection              6. Low Temperature Protection

7.Short Circuit Protection                        8. Surge Protection

9.Overload Protection (self-checking recover)

A great feature of our EV charger is that it is fully adjustable. You can adjust the current using a simple push-button interface to choose the best charging speed for your vehicle. This means you can quickly charge the car when you need it, or slowly when you have more time. Plus, you can set charging time appointments so you can schedule charging times in advance. This is especially useful if you know you'll be traveling a long distance and need to make sure your car is fully charged.

As well as our EV chargers, we also offer a range of other products designed to help keep your car running smoothly. This includes portable EV chargers, wall chargers, EV adapters, EV connectors, and more. All of our products are made of high-quality materials and durable to use. We are committed to providing our customers with the best products and services, and we are always looking for ways to improve our products and make them more convenient and user-friendly.
