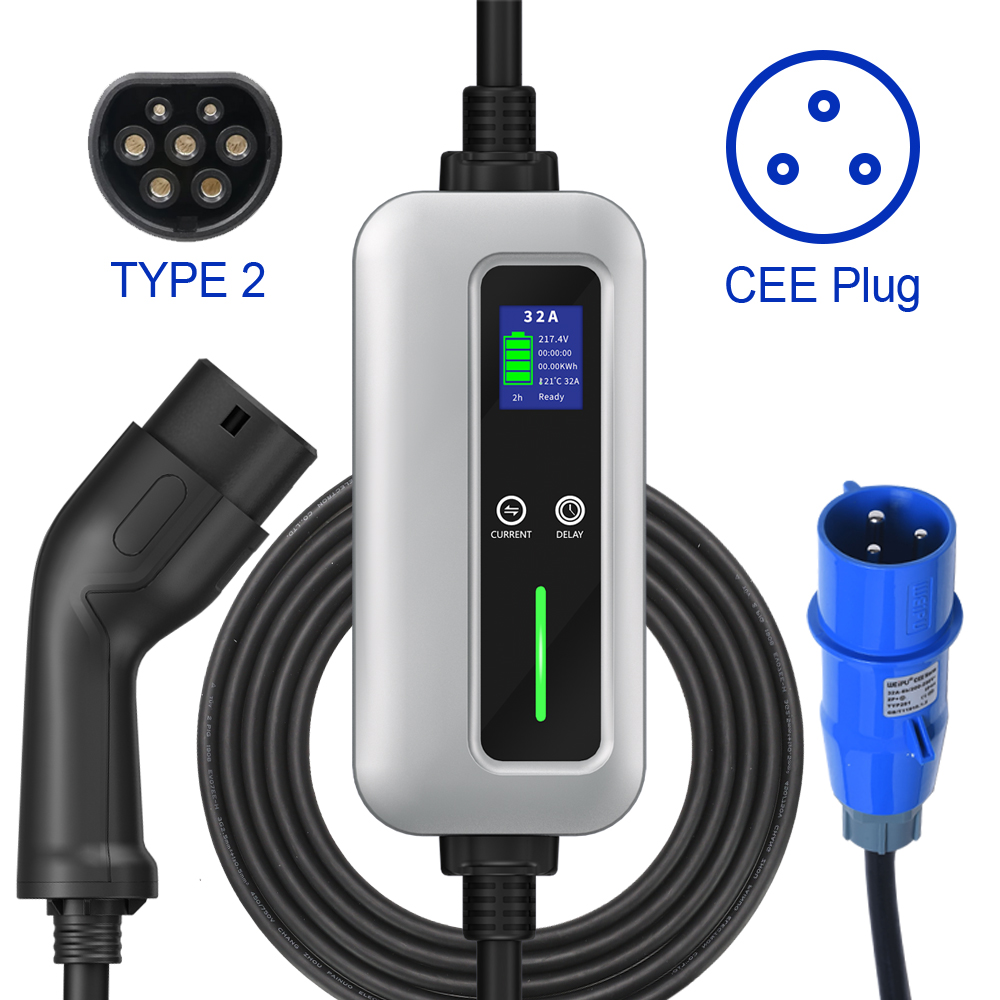

32A Level 2 Type 2 EV Charger with Blue CEE plug Current Adjustable Delay Charging

Short Description:



Rated current: 10A / 16A / 20A/ 24A / 32A ( Optional )
Operating voltage: 110V~250V AC
Insulation resisitance:>1000MΩ
Therminal temperature rise:<50K
Withstand voltage:2000V
Working temperature: -30°C ~+50°C
Contact impedance: 0.5m Max




Product Detail

Product Tags

32A Level 2 Type 2 EV Charger with Blue CEE plug Current Adjustable Delay Charging



32A CEE EV Charger Type 2 2

Rated Current 10A / 16A / 20A/ 24A / 32A   ( Optional )
Rated Power Max 7.2KW
Operation Voltage AC 110V~250 V
Rate Frequency  50Hz/60Hz
Leakage Protection Type B RCD  ( Optional )
Withstand Voltage 2000V
Contact Resistance 0.5mΩ Max
Terminal Temperature Rise <50K
Shell Material ABS and PC Flame Retardant Grade UL94 V-0
Mechanical Life No-Load Plug In  / Pull Out >10000 Times
Operating Temperature -25°C ~ +55°C
Storage Temperature -40°C ~ +80°C
Protection Degree IP67
EV Control Box Size 200mm (L) X 93mm (W) X 51.5mm (H)
Weight 2.8KG
OLED Display Temperature, Charging Time, Actual Current, Actual Voltage, Actual Power, Capacity Charged, Preset Time
Standard IEC 62752  ,  IEC 61851
Certification TUV,CE Approved
Protection 1.Over and under frequency protection                         2. Over Current Protection 3.Leakage Current Protection (restart recover)        4. Over Temperature Protection 5.Overload protection (self-checking recover)             6. Ground Protection and Short circuit protection 7.Over voltage and under-voltage protection                8. Lighting Protection

• This cable has a precise internal structure. Please don't take it apart without any

professional technical support. The device does not contain any user-serviceable parts.

•  Don't use it in water.

•  The product is only for EV charging. Please don't use it in any other occasions, including

hauling, binding and so on.

•  Do not use the charger if the controller box is damaged.

•  The device must be grounded.

•  Do not use this device with an extension cord or an adapter.

•  Mind the risk of electrical shock or burn.

•  Please do not disconnect the plugs while the ev charger is charging the vehicle
