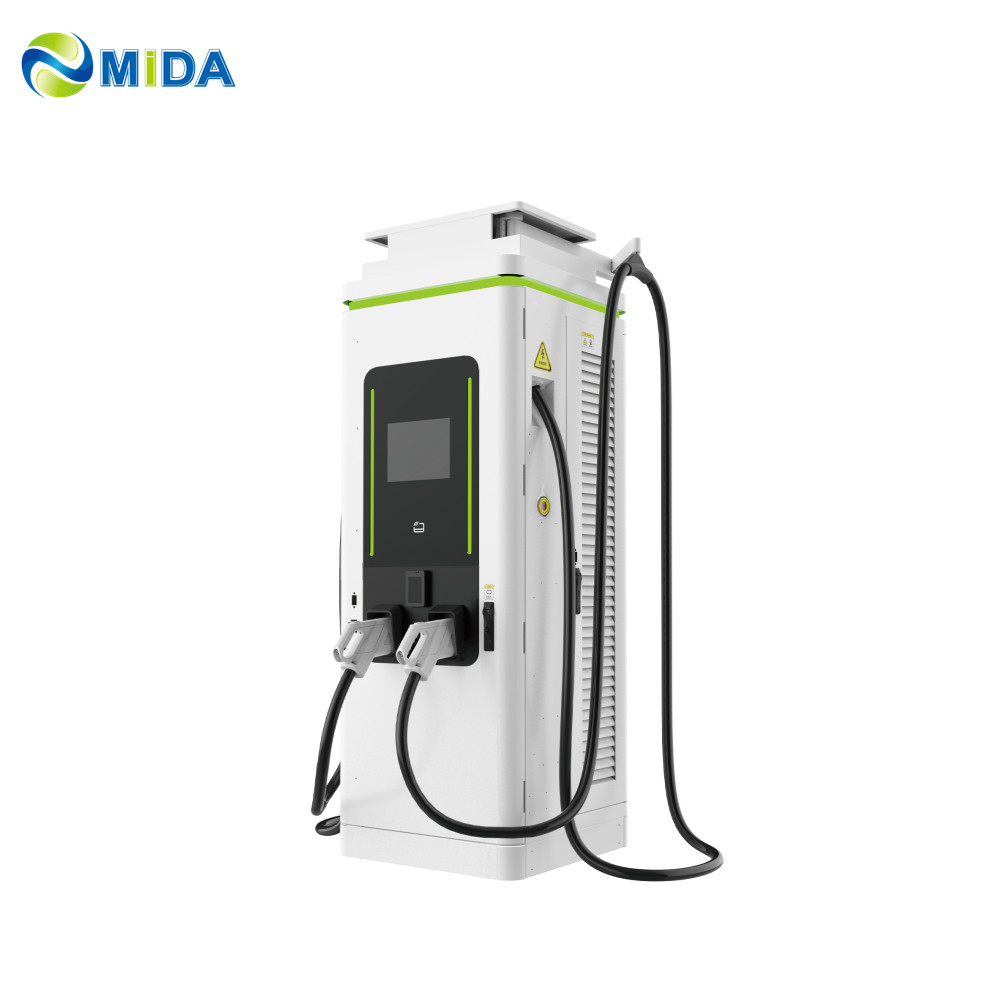

400kW DC Fast Charging Station Liquid Cooling Charger DC EV Charger Fast Charging Station CCS2

Short Description:

Product category: 400kW DC Fast Charging Station

Connector Stadard: CCS/GBT

Output power: 400KW max

Max output current(A): 500A

Frequency: 55Hz±10%

Power factor: ≥0.99

Send email to us

Product Detail

Product Tags

400kW DC Fast Charging Station Liquid Cooling Charger 350kW DC EV Charger Fast Charging Station CCS2

Machine	Dimension(WDH)	700mm700mm1800mm	Class of protection	IP54（Outdoors）
	Equipment weight	About:390kg	Cooling	Forced air cooling
	Module weight	About:17kg	Cable length	5m(Customizable)
	Installation type	Floor type
Input	Ac input voltage	AC400V±10％	Grid frequency	45Hz to 65Hz
	Phase lines	L1、L2、L3、N、PE	Power factor	≥0.98
	Current:THD	<5%
Output	Output power	DC240KW	Efficiency	≥95%
	Output voltage	DC150V to 1000V	Measure	Dc meter
	Output current	Single gun:DC0 to 300A
Environment	Humidness	5％ to 95％	Altitude	≤2000m
	Storage TEMP	-40℃ to +70℃
	Operating TEMP	-30℃ to 50℃ （50℃ to 70℃ Derated output）
Screen	Reveal	10in Display
	Scram	Press to stop
	Starting mode	Plug and charge, swipe card, scan code (optional)
	Billing mode	Automatic charging fixed power fixed amount fixed time (optional)

Benefits of the High Power Fast DC Charger (FC & HC series) 1. Rapid Charging: The High Power Fast DC Charger (FC & HC series) provides extremely fast charging, reducing downtime for electric vehicle owners and ensuring they can quickly get back on the road. 2. Compatibility: It is compatible with a wide range of electric vehicle models, making it versatile and accessible to various users. 3. High Throughput: These chargers can handle a high volume of vehicles, making them ideal for high-traffic public charging stations and commercial fleets. 4. Robust Design: The FC & HC series features a durable and robust design, capable of withstanding heavy usage and harsh environmental conditions, ensuring long-term reliability.
