480kw Split DC Fast Charging System 4sets 120kw Dispenser High Quality 360kw 720kw

Short Description:

Product category:240kw DC EV Charger

Connector Stadard: CCS/GBT/CHAdeMO

Output power: 240KW

Max output current(A): 500A

Frequency: 55Hz±10%

Power factor: ≥0.99

Send email to us

Product Detail

Product Tags

480kw Split DC Fast Charging System 4sets 120kw Dispenser High Quality 360kw 720kw

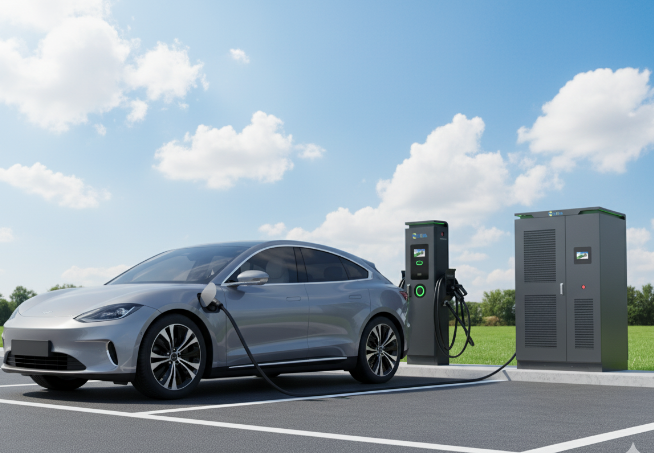

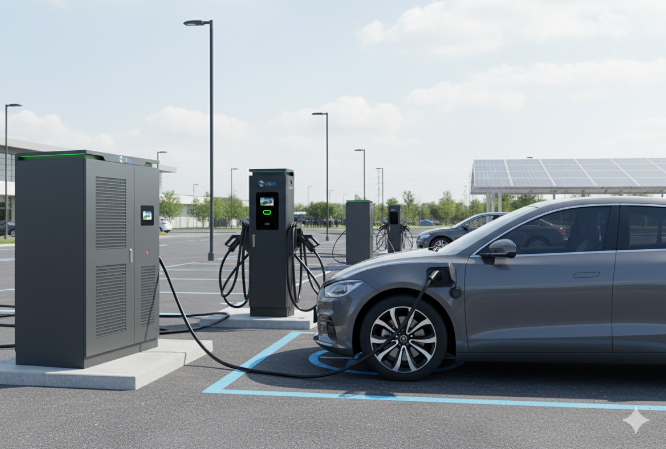

The split design of the 360kw/480kw DC charging station means it can charge two/four/six vehicles simultaneously, making it more efficient in high-traffic areas such as motorways or commercial car parks. Smart charging scheduling helps optimize charging times to reduce peak power demand, while real-time monitoring ensures charging stations are operating efficiently and effectively. It also reduces overall installation costs for car park operators, as they can service more vehicles with fewer charging stations.With the lowest investment, power up all 6 charging points from 480kw to 960kw by implementing one more power bank.

Machine	Dimension(WDH)	700mm700mm1800mm	Class of protection	IP54（Outdoors）
	Equipment weight	About:600kg	Cooling	air/liquid cooling
	Module weight	About:17kg	Cable length	5m(Customizable)
	Installation type	Floor type
Input	Ac input voltage	AC400V±10％	Grid frequency	45Hz to 65Hz
	Phase lines	L1、L2、L3、N、PE	Power factor	≥0.98
	Current:THD	<5%
Output	Output power	DC360KW,480kw, 720kw	Efficiency	≥95%
	Output voltage	DC150V to 1000V	Measure	Dc meter
	Output current	Single gun:DC0 to 300A
Environment	Humidness	5％ to 95％	Altitude	≤2000m
	Storage TEMP	-40℃ to +70℃
	Operating TEMP	-30℃ to 50℃ （50℃ to 70℃ Derated output）
Screen	Reveal	10in Display
	Scram	Press to stop
	Starting mode	Plug and charge, swipe card, scan code (optional)
	Billing mode	Automatic charging fixed power fixed amount fixed time (optional)
