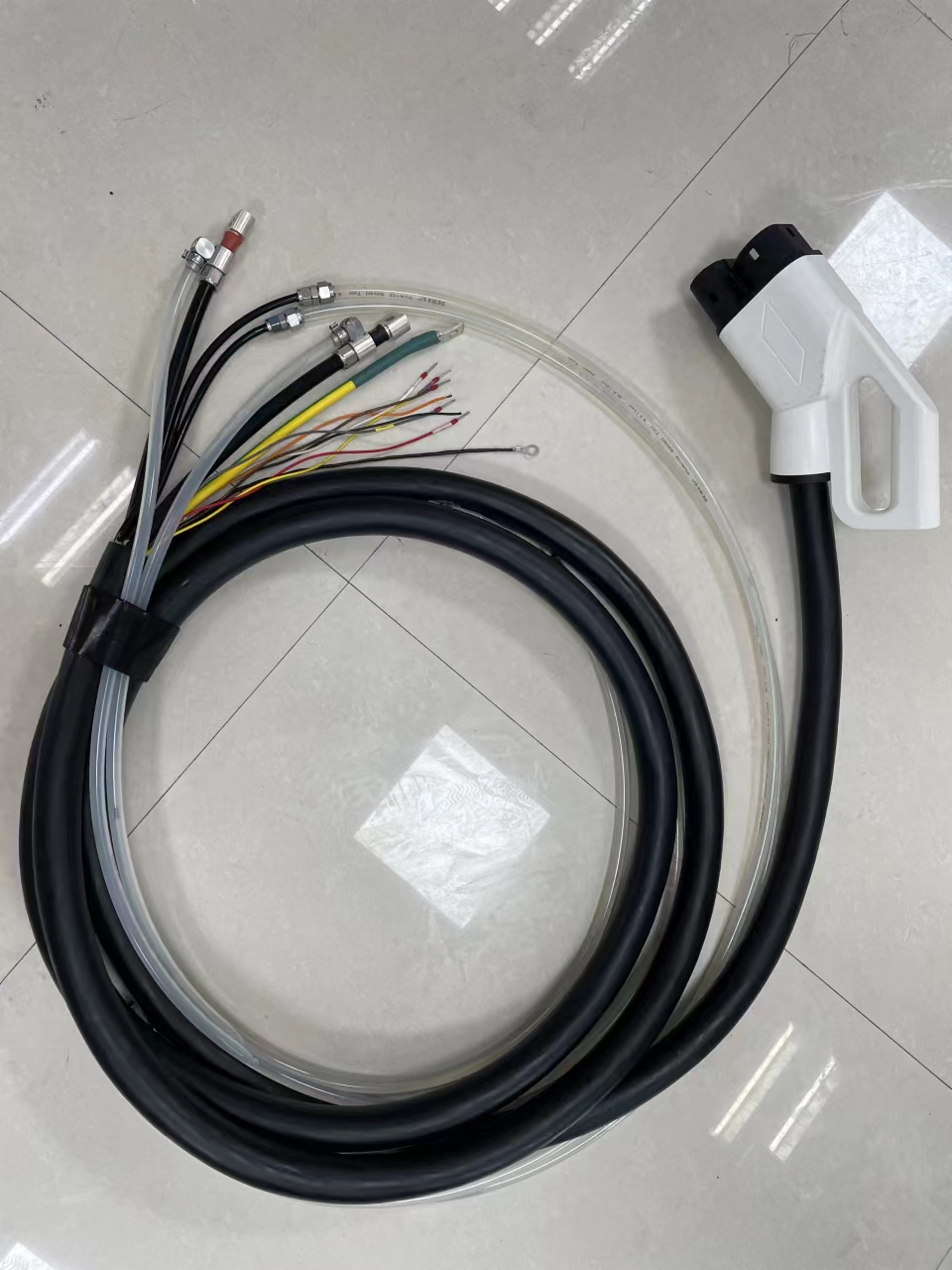

CCS2 Liquid Cooling Charging Connector DC 500A, 800A,1000A For Ultra Fast Charging Station

Technical Requiremenfs:

Technical Requiremenfs:

1.Rated voltage:1000V DC;

2.Rated current:800A,1000A

3.Environment temperature:-30℃~+50℃

4.Insulation resistance:>500M 1000VDC 1min;

5.Withstand voltage:4000V AC 1min,

6.Leak current: ≤ 10mA

7.Protection level:lP54(mating area)

8.Mechanical life:more than 10000 cycle,

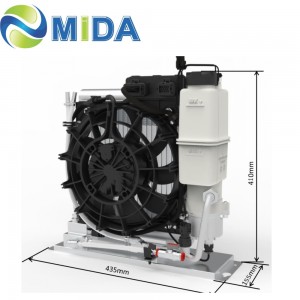

9.Flame retardant rating:UL94-VO10.The coolant is matched with the FUCHSBluEV TF8016,which uses a cooling systemabove 6kW(including 6kW).

The coolant andcooling system have been matched for the above test,if it needs to be replaced, it needs to be re-calibrated test to confirm theadaptation effect and related performance compatibility, cooling ability)
