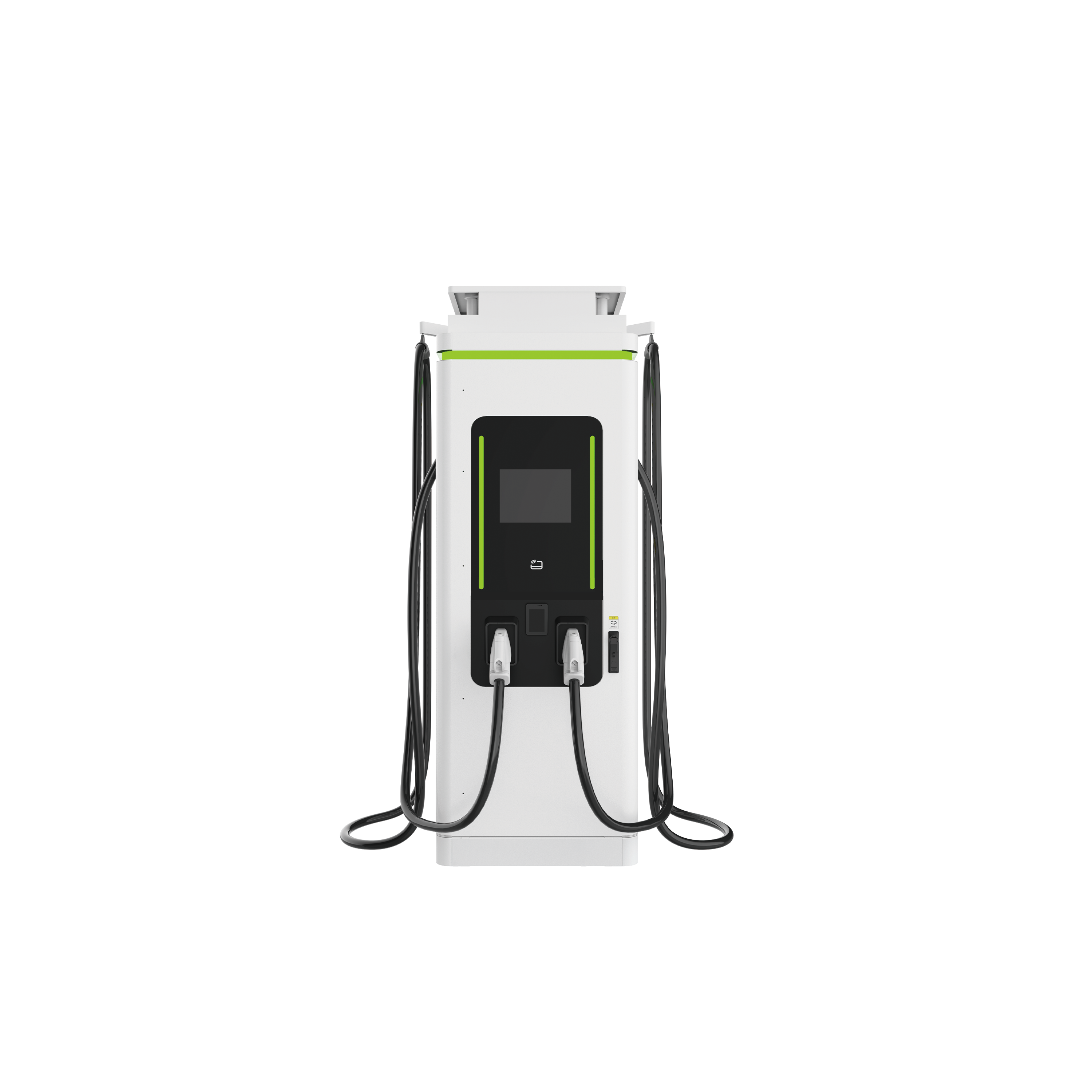

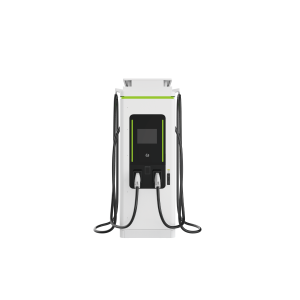

DC 360kW Liquid Cooling Ultra Fast EV Charger Station Manufacturer Liquid Cooling Charger

Short Description:

Product category: 360kw DC EV Charger

Connector Stadard: CCS/GBT/CHAdeMO

Output power: 360KW

Max output current(A): 500A

Frequency: 55Hz±10%

Power factor: ≥0.99

Send email to us

Product Detail

Product Tags

DC 360kW Liquid Cooling Ultra Fast EV Charger Station Manufacturer Liquid Cooling Charger

DC charging voltage refers to the electrical potential that powers the charging process in electric vehicles. Unlike Alternating Current (AC) charging, which is commonly used for home charging, DC charging offers faster and more efficient charging solutions for EVs. The DC charging voltage is typically higher than the voltage used for AC charging.

Electric vehicle charging stations that provide DC charging are equipped with substantial power output capabilities to ensure a swift and convenient charging experience for EV owners. The DC voltage is directly connected to the vehicle’s battery, delivering power at high speeds, significantly reducing charging time compared to AC charging.

Machine	Dimension(WDH)	700mm700mm1800mm	Class of protection	IP54（Outdoors）
	Equipment weight	About:390kg	Cooling	Forced air cooling
	Module weight	About:17kg	Cable length	5m(Customizable)
	Installation type	Floor type
Input	Ac input voltage	AC400V±10％	Grid frequency	45Hz to 65Hz
	Phase lines	L1、L2、L3、N、PE	Power factor	≥0.98
	Current:THD	<5%
Output	Output power	DC240KW	Efficiency	≥95%
	Output voltage	DC150V to 1000V	Measure	Dc meter
	Output current	Single gun:DC0 to 300A
Environment	Humidness	5％ to 95％	Altitude	≤2000m
	Storage TEMP	-40℃ to +70℃
	Operating TEMP	-30℃ to 50℃ （50℃ to 70℃ Derated output）
Screen	Reveal	10in Display
	Scram	Press to stop
	Starting mode	Plug and charge, swipe card, scan code (optional)
	Billing mode	Automatic charging fixed power fixed amount fixed time (optional)
