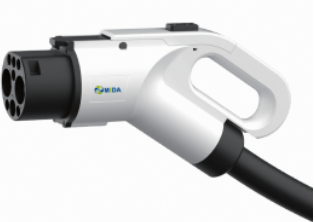

Fast Charging Connector 800A GBT Connector DC EV Charging 800A GBT Plug

Short Description:

Model: MIDA-GBT-EV800P
Rated current: 800A, 1000A
Operating voltage: 1000V
DC Insulation resisitance:>1000MΩ
Therminal temperature rise:<50K
Withstand voltage:2000V

Send email to us

Product Detail

Product Tags

Fast Charging Connector 800A GBT Connector DC EV Charging 800A GBT Plug

Electrical Performance

Reliable DC quick charging from a DC power source
ROHS certified
Built in safety actuatorprevent spowered disengageent
Weather proofing to IP54
Leverassisted insertion
Mates with available DC charge coupler inlet
Rated Mating Cycles: 10000
Maximum Rated Voltage: 1000VDC

High-power DC charging, also known as ultra-fast charging, utilizes direct current (DC) to quickly charge electric vehicle (EV) batteries. These chargers deliver significantly more power than standard AC chargers, resulting in much faster charging times. High-power DC charging is characterized by charging currents of 375 amps and higher, with charging stations capable of delivering power outputs ranging from 100kW to 350kW or even higher.
