500A CCS Combo 2 Plug Liquid Cooled Charging Gun CCS Liquid Cooling charging gun 500A

Short Description:

Model: MIDA-CCS2-EV500P

1. Rated Current：500A
2. OperationVoltage：DC 1000V
3. Insulation Resistance：＞1000MΩ（DC500V）
4. DC Max Charging Power: 127.5KW
5. Withstand Voltage：3200V

CCS Combo 2 EV Charger Connector
500A CCS Combo 2 Plug for Fast Charger Station
500A Fast Charger CCS 2 Connector
IEC 62196-3 Combo 2 DC Charging Plug
500A CCS Combo 2 Connector for Quick Charging Point

Send email to us

Product Detail

Product Tags

400A 500A CCS Combo2 Plug DC Fast Charging Connector Liquid Cooled Charging Gun

Rated voltage	1000V Max.	Cable bending radius	≤300mm
Voltage Current	500A Max.(continue)	Max.Cable length	6m Max.
Power	500KW Max.	Cable weight	1.5kg/m
Withstanding voltage:	3500V AC /1min	Operating altitude	≤2000m
Insulation resistance	Normal condiction ≥ 2000MΩ	Plastic part material	Thermoplastic
	Meet the requirements of Chapter 21 of IEC 62196-1 under damp and hot conditions	Contact material	Copper
		Contact Plating	Silver plating

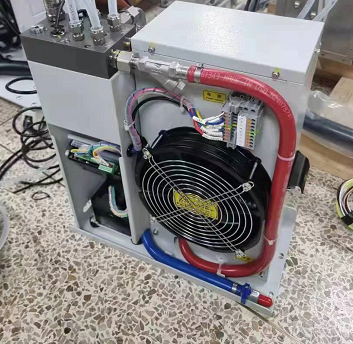

Temperature sensor	PT1000	Cooling device size	415mm494mm200mm(WHL）
Conductive operating temperature	90℃	Cooling device rated votage	24V DC
Protection(connector)	IP55/	Cooling device rated current	12A
Protection(Cooling device)	Pump&Fan:IP54/Device no protection	Cooling device rated power	288W
Insertion/withdrawal force	≦100N	Cooling device noise	≤58dB
Insertion/withdrawal cycles:	10000次（None load）	Cooling device weight	20kg
Operating temperature	-30℃~50℃	Coolant	Silicon oil

Flame class	UL 94-V0	Coolant flash point	>200℃
Conductor size	35mm2(Cooling)	Coolant Dielectric strength	15KV
Power consumption of the conductor	1.55KW（6m，500A）	Flow rate	3-6LPM（25℃）
Cable colour	Black	Pressure of liquid cooling system	0.7MPa Max
Cable diameter	Ø33.5±1mm	Max. pressure	0.8MPa Max.
Cable jacket material	TPU	Max. temperature of coolant	80℃
