Liquid-Cooling Technology in MCS: Managing Thermal Loads at 3,000 Amps

Meta description: How liquid cooling makes 3,000A megawatt charging physically possible. A technical guide to I²R heat, coolant loops, cooled connectors, sealed power modules, chiller sizing, and thermal derating in MCS deployments.

IMAGE PLACEHOLDER — THUMBNAIL
Filename: mcs_blog_4_thumbnail.jpg
Dimensions: 400 × 350 px | Max file size: 30 KB
Alt text: Cutaway view of a liquid-cooled MCS connector showing internal coolant channels and high-current contacts.

Quick Answer

At 3,000 A, resistive heating in charging cables and connectors scales with current squared (Q = I²R), so the heat generated in an MCS power path is roughly 25 times that of a 600 A CCS session for the same conductor resistance — while the charging window is far shorter. Air cooling cannot remove this heat, which is why liquid cooling is mandatory in the Megawatt Charging System. Dielectric coolant circulates through channels inside the connector and along the full cable length, then through sealed power modules, before heat is rejected at a chiller or dry cooler in a centralised power room. Liquid cooling is not an accessory to MCS; it is the enabling technology that lets 1,250 V and 3,000 A operate safely and continuously.

Key Takeaways

• Heat rises with the square of current. Going from 600 A to 3,000 A multiplies conductor heat by roughly 25×, which is why MCS cannot be air-cooled.
• Cooling must cover the whole power path — connector contacts, cable, and power modules — not just the power electronics cabinet.
• Coolant flows inside the cable and connector, carrying heat from the contact points to a chiller unit, rather than relying on oversized copper.
• Sealed liquid-cooled power modules raise reliability, delivering MTBF above 500,000 hours by keeping dust and moisture away from sensitive electronics.
• Cooling plant sizing determines real-world throughput. Sites that under-size for peak ambient (typically 40°C) will silently derate output on the hottest days, exactly when demand peaks.

Introduction: Why Friction Becomes Heat at Megawatt Scale

Every ampere that flows through a real conductor encounters resistance, and resistance converts electrical energy into heat. The relationship is captured by Joule’s law: Q = I² × R × t. The critical detail for megawatt charging is the squared term. Heat generation does not scale linearly with current — it scales with the square of it.

This is why the jump from CCS to MCS is not a gradual thermal increase. A heavy-duty CCS2 session may run at 500–600 A. MCS spans 1,000–3,000 A. Raising current from 600 A to 3,000 A increases heat generation by a factor of 25 for the same conductor resistance. Meanwhile, the charge window is much shorter — MCS exists to compress charging into 30–45 minute breaks — which leaves almost no time for heat to soak away between sessions.

The result is a hard physical constraint: at megawatt scale, the limiting factor is no longer the power electronics or the battery, but the ability to remove heat from the contact points. Liquid cooling is the industry’s answer. For the standard-level context, MIDA Power’s MCS Megawatt Charging System standard guide explains why the specification mandates a liquid-cooled connector rather than leaving cooling optional.

The Physics: Why Air Cooling Fails at 3,000 Amps

Air cooling has a fundamental limit: it can only remove so much heat per unit of surface area, and it does so inefficiently compared to liquid.

Three factors compound the problem:

1. Current density. To carry 3,000 A with air cooling, a connector would need impractically large, heavy contact surfaces. The copper mass required would make a cable that a driver — or a robot — could not maneuver.
2. Contact resistance. Even a milliohm of resistance at the contact interface generates meaningful heat under megawatt current. At 3,000 A, a single milliohm dissipates 9 kW of heat concentrated at the connector.
3. Enclosed geometry. The MCS connector must maintain touch-safe temperatures in accordance with UL 2251 and CharIN requirements. An air-cooled design cannot reject the required heat while remaining compact and ergonomic.

The table shows why MCS cooling is non-negotiable. There is no air-cooled path to 3,000 A. The heat simply cannot be removed fast enough from a connector that must remain safe to handle and small enough to automate.

Coolant Architecture: Cooling the Entire Power Path

Effective MCS thermal management treats the connector, cable, and power modules as one continuous cooling system, not three independent components.

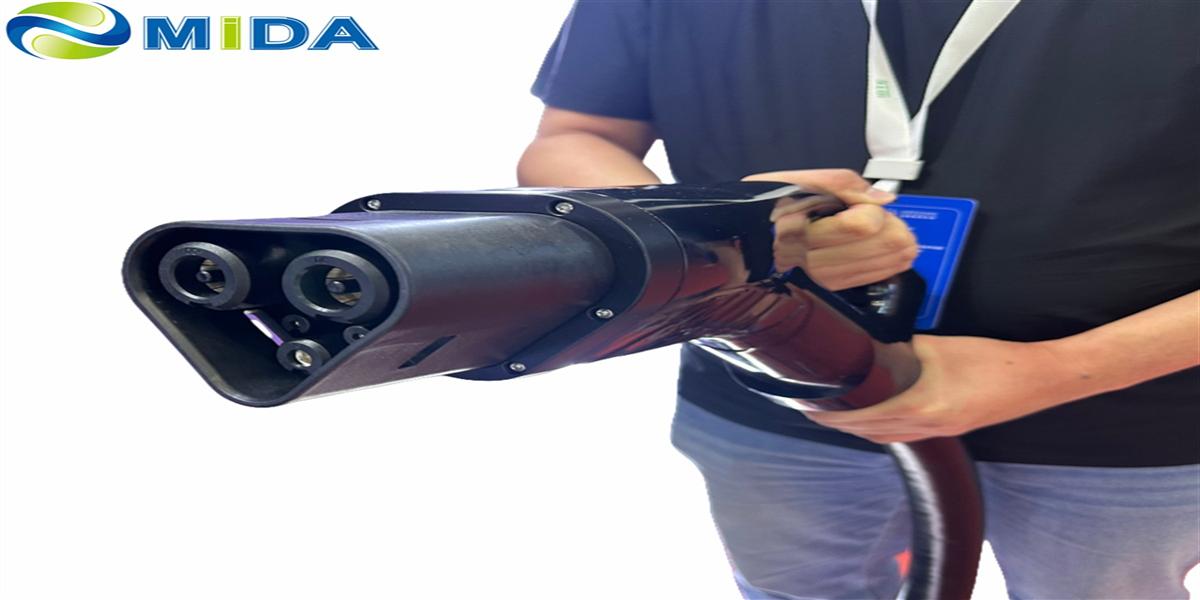

1. The connector. Dielectric coolant circulates through channels built into the connector housing, directly cooling the high-current contact pins. This keeps touch temperatures within limits even at 3,000 A. MIDA Power’s MCS megawatt charging connectors integrate these liquid-cooled contact interfaces in the 1,000–1,500 A class, engineered for the first commercial megawatt stations.

2. The cable. Coolant runs the full length of the charging cable alongside the conductors, carrying heat away from the contacts and out of the driver’s working area. This is why MCS cable assemblies are noticeably thicker and terminate in dedicated cooling hardware rather than a simple plug.

3. The cooling unit. A dedicated chiller or coolant circulation unit receives the heated coolant and rejects the heat to ambient, then recirculates cooled fluid. MIDA Power’s liquid-cooling units for high-power charging are rated for continuous duty across the 500–800 A class and above, matching the megawatt cable assemblies and HPC systems they support.

4. The power modules. Inside the station, power-conversion modules are a second major heat source. Megawatt stations stack many modules to reach 1 MW+, and air-ventilated modules risk dust and moisture ingress in port or roadside environments. Sealed liquid-cooled modules reject heat through a closed coolant loop instead, which is why industrial-grade designs achieve MTBF figures above 500,000 hours. MIDA Power’s liquid-cooled power modules (40–60 kW, with 125 kW liquid-cooled variants) follow exactly this sealed architecture.

Component Cooling vs. Site Cooling: Two Different Problems

Component cooling keeps the hardware alive; site cooling determines how much power the site can actually deliver. Operators must plan both.

Component-level cooling is handled by the connector, cable, and module coolant loops described above. These are closed systems with defined flow rates and coolant specifications.

Site-level cooling is handled by the chiller plant or dry coolers that reject accumulated heat to the environment. This is where ambient temperature matters most. A cooling system sized for 25°C ambient may be forced to derate at 40°C, reducing charging power precisely when highway demand peaks in summer.

The derating risk is silent and expensive. A site that meets specifications on paper but under-sizes its cooling plant will deliver less energy and slower turnaround on the hottest days — the days when corridor utilization is highest. Cooling plant capacity, coolant distribution, and ambient-temperature derating curves belong in acceptance criteria, not in fine print.

IMAGE PLACEHOLDER — CONTENT
Filename: mcs_blog_4_content.jpg
Dimensions: 1200 × 600 px | Max file size: 250 KB
Alt text: Diagram of MCS liquid-cooling loop showing coolant flow through connector, cable, power modules, and chiller plant.

Thermal Separation: The Case for Centralised Cooling

Centralising power electronics and cooling in a power room has benefits beyond thermal efficiency. When heat is rejected at the power room rather than at the dispenser, three things improve:

1. Acoustic compliance. Truck-stop and motorway-service permits routinely impose 55–60 dB(A) night limits. Dispensers with no fans emit almost no noise; all fan and pump noise is confined to the power room, simplifying planning approval.
2. Driver comfort. Rejecting heat away from drivers and sleeper cabs improves the charging experience, which matters during mandatory rest periods.
3. Cleaner electronics. Keeping power electronics in a controlled room rather than exposed to roadside dust and moisture extends service life.

This logic is central to why 1440kW split DC systems are the future for heavy-duty trucks: split architecture decouples where power is converted and cooled from where the driver plugs in. The same principle scales down to individual MCS sessions, where the coolant loop between connector and chiller is the physical link between the two.

Battery-Side Thermal Loads: The Other Half of the Equation

Cooling infrastructure is only half the thermal story; the vehicle battery generates heat too, and both must be planned together.

A 600 kWh truck pack accepting 1 MW faces an average C-rate of roughly 1.7C. That is a demanding rate for a large pack, and the truck’s onboard thermal management system must reject significant heat to sustain it. This is why MCS pilots pair with trucks explicitly designed for high-rate charging from the outset — and why the charging curve tapers as the battery approaches full, which in turn affects site power allocation.

For site planners, the practical implication is that the charging station and the vehicle must be co-designed for thermal compatibility. A truck with limited charge acceptance will draw less than the dispenser can supply; a site controller that reads battery state of health and temperature over ISO 15118-20 can adjust the power curve to protect battery life while reallocating freed capacity to other bays.

Specifying Liquid-Cooling Hardware

When selecting liquid-cooled MCS components, four factors separate reliable systems from fragile ones:

1. Coolant compatibility. Confirm the coolant specification and whether dielectric or water-glycol fluid is required, and verify material compatibility across the whole loop.
2. Continuous-duty rating. Cooling units must be rated for continuous operation at full power, not peak ratings that cannot be sustained.
3. Ambient derating curves. Demand documented performance at the site’s worst-case ambient temperature.
4. Single-vendor integration. Because the connector, cable, cooling unit, and modules form one loop, sourcing them from one manufacturer reduces interface risk and simplifies service. MIDA Power supplies this full set — coolants, connectors, cables, modules, and cooling units — as an integrated thermal ecosystem.

For operators migrating from CCS2 to MCS, the discipline carries over: essentially every high-power deployment already uses liquid-cooled cables and modules, so the MCS upgrade is an extension of existing practice rather than an unfamiliar technology. MIDA Power’s Class 8 480kW and MCS integration guide documents how those cooling disciplines transfer from 480 kW to megawatt operation.

FAQ

1. Why does MCS require liquid cooling?
Because resistive heat scales with the square of current. At 1,000–3,000 A, air cooling cannot remove heat fast enough from connectors and cables while keeping them safely handleable, so MCS mandates liquid cooling across the power path.

2. How much more heat does 3,000 A generate than 600 A?
For the same conductor resistance, roughly 25 times more, since heat scales with current squared. This is why the CCS-to-MCS transition is a thermal step change, not a gentle increase.

3. What is cooled inside an MCS system?
Three main elements: the connector contacts, the full-length charging cable, and the power-conversion modules — with a chiller or cooling unit rejecting the collected heat at the station or power room.

4. Does the truck’s battery also need cooling during MCS charging?
Yes. A 600 kWh pack at 1 MW experiences roughly a 1.7C average rate, so the vehicle’s onboard thermal management must reject significant heat. MCS pairs best with trucks designed for high-rate charging.

5. Why is centralised cooling better than per-dispenser cooling?
It confines fan and pump noise to a power room (aiding 55–60 dB(A) night-limit compliance), keeps heat away from drivers, and shields power electronics from roadside dust and moisture.

6. What happens if a site under-sizes its cooling plant?
The station derates output at high ambient temperatures — typically above 30–40°C — silently reducing delivered energy exactly when corridor demand peaks. Cooling capacity should be sized for worst-case ambient.

7. What should I check when buying liquid-cooled MCS hardware?
Coolant compatibility, continuous-duty (not peak) ratings, documented ambient derating curves, and single-vendor integration of connector, cable, cooling unit, and modules to minimise interface risk.

Conclusion

Liquid cooling is the technology that makes 3,000 A charging physically possible. The squared relationship between current and heat means megawatt charging cannot be achieved with more copper or bigger fans — it demands active coolant circulation through the connector, cable, and power modules, with heat rejected at a chiller plant. Getting this architecture right is what separates a site that delivers sustained megawatt output from one that derates under load.

For operators, the practical mandate is clear: specify continuous-duty, liquid-cooled components; size cooling plant for worst-case ambient; centralise heat rejection in a power room; and source the whole thermal loop from a single accountable vendor. Platforms built on hot-swappable liquid-cooled modules — such as MIDA Power’s liquid-cooled charging stations and cooling units — are engineered so that thermal management scales with the megawatt roadmap instead of becoming its bottleneck.
