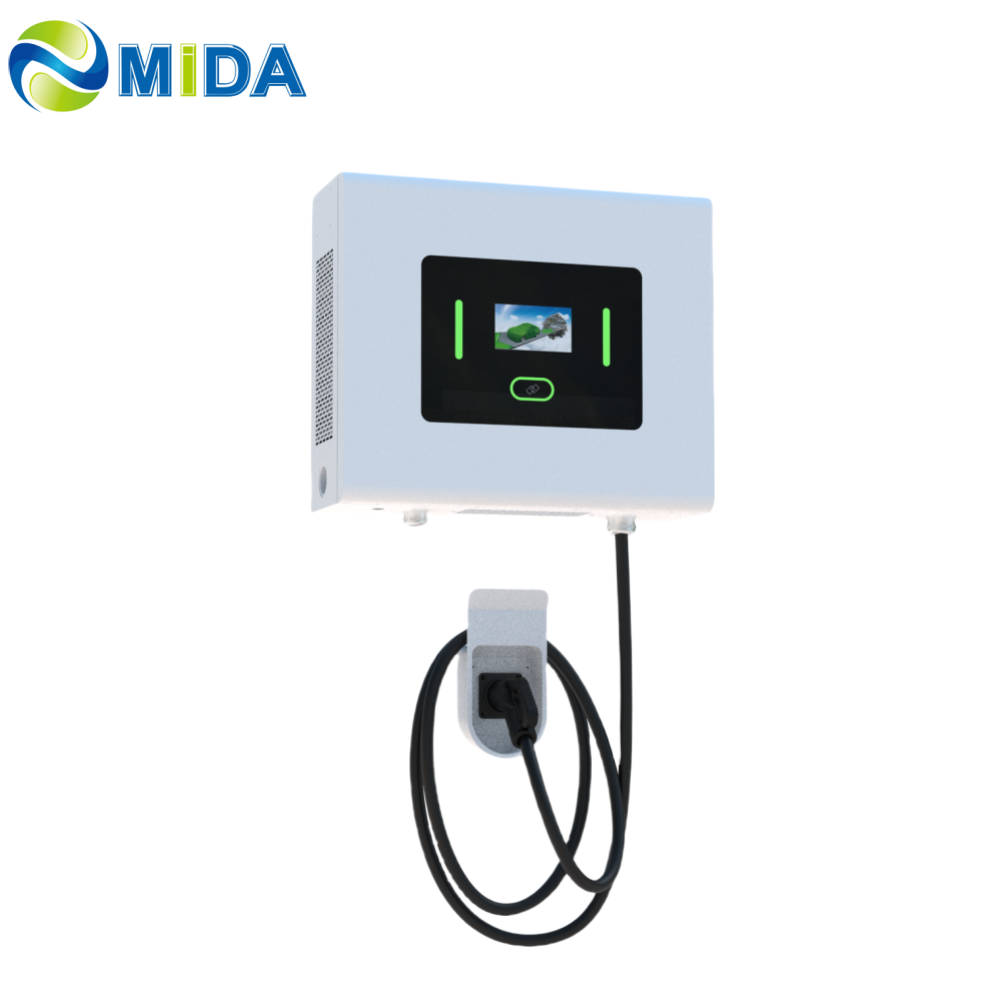

Wall Mounted DC Charger Station 20kw 30kw 40kw With Stand

Short Description:

Product category: 30kw DC Wallbox Charger

Connector Stadard: CCS/GBT/CHAdeMO

Output power:20kw/30kw/40kw

Max output current(A): 125A

Frequency: 55Hz±10%

Power factor: ≥0.99

Send email to us

Product Detail

Product Tags

Wall Mounted DC Charger Station 20kw 30kw 40kw With Stand

The 20kW/30kW/40kW DC Wallbox Charger delivers reliable fast charging in a compact, space-saving design. Ideal for home users, workplaces, and small commercial sites, it supports mainstream connectors such as CCS2, CHAdeMO, and GB/T. With high efficiency, low noise, and smart OCPP connectivity, it provides a cost-effective solution for upgrading from AC charging to true DC fast charging.

The 30kW DC Wallbox Charger offers a balance of power and efficiency, making it suitable for commercial parking areas, fleets, dealerships, and public charging networks. It delivers stable high-power output, intelligent load management, and full OCPP compatibility for backend monitoring. Designed for both indoor and outdoor installation, it ensures dependable performance in all environments.

Machine	Dimension(WDH)	400mm200mm180mm	Class of protection	IP54（Outdoors）
	Equipment weight	About:30kg	Cooling	air/liquid cooling
	Module weight	About:5kg	Cable length	5m(Customizable)
	Installation type	wall mounted type
Input	Ac input voltage	AC400V±10％	Grid frequency	45Hz to 65Hz
	Phase lines	L1、L2、L3、N、PE	Power factor	≥0.98
	Current:THD	<5%
Output	Output power	DC360KW,480kw, 720kw	Efficiency	≥95%
	Output voltage	DC150V to 1000V	Measure	Dc meter
	Output current	Single gun:DC0 to 300A
Environment	Humidness	5％ to 95％	Altitude	≤2000m
	Storage TEMP	-40℃ to +70℃
	Operating TEMP	-30℃ to 50℃ （50℃ to 70℃ Derated output）
Screen	Reveal	10in Display
	Scram	Press to stop
	Starting mode	Plug and charge, swipe card, scan code (optional)
	Billing mode	Automatic charging fixed power fixed amount fixed time (optional)
