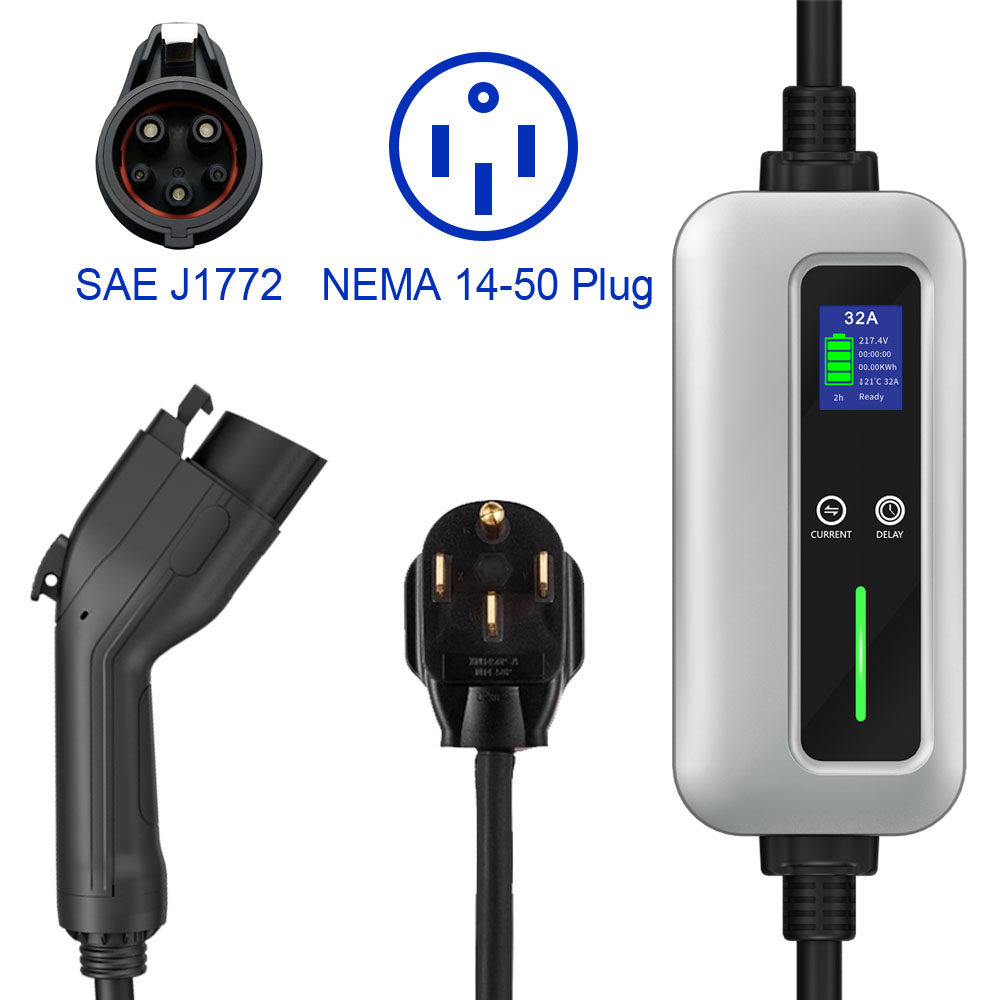

10A / 16A / 20A/ 24A / 32A Type 1 Portable EV Charger with NEMA 14-50 plug

Short Description:

Rated current: 10A / 16A / 20A/ 24A / 32A ( Optional )

Operating voltage: 110V~250V AC

Delay Charging: 1-12Hour

Insulation resisitance:>1000MΩ
Therminal temperature rise:<50K
Withstand voltage:2000V
Working temperature: -30°C ~+50°C
Contact impedance: 0.5m Max


Product Detail

Product Tags

10A / 16A / 20A/ 24A / 32A Type 1 Portable EV Charger with NEMA 14-50 plug

Protection Degree IP67 ( EV Charging Plug )    ,    IP67 ( EV Charging Box )
EV Control Box Size 260mm (L) X 102mm (W) X 77mm (H)
Weight 3.80KG
LED Display Temperature, Charging Time, Actual Current, Actual Voltage, Actual Power, Capacity Charged, Preset Time
Standard IEC 62752  ,  IEC 61851
Certification TUV,CE Approved
Protection 1.Over and under frequency protection                         2. Over Current Protection
3.Leakage Current Protection (restart recover)        4. Over Temperature Protection
5.Overload protection (self-checking recover)             6. Ground Protection and Short circuit protection
7.Over voltage and under-voltage protection                8. Lighting Protection

40A
