TH30F10025C7 is specially developed by MIDA , which is AC/DC module with high efficiency and high power density. This product is three-phase four-wire system (three phase+PE) input, supporting 285VAC-475VAC voltage input with max power 30KW(constant 250-1000V). The charging module communicates with main monitor through CAN bus.

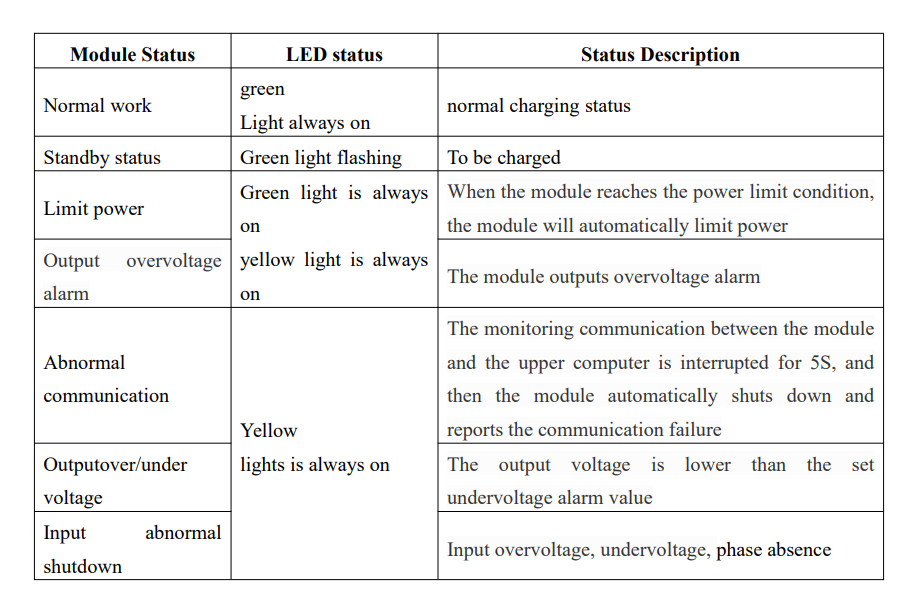

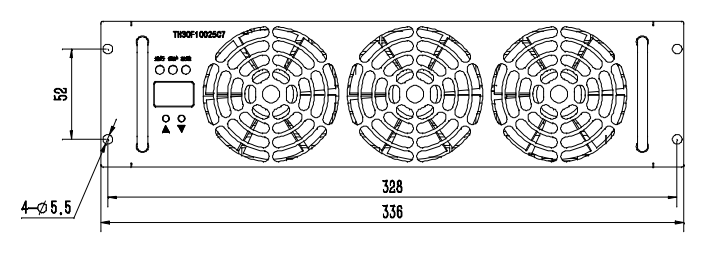

1. Description of digital tube: A) red, 3 digits B) Display contents: voltage, current, address, version and fault code A) the number of keys is 2 C) key identification ▲ (up) and ▼ (down) D) switch the display content and set the module parameters according to the key usage E) operation mode I. short press ▲ or ▼ on the display page to switch the display pages in turn; Ii. Press ▲ or ▼ briefly on the setting page to increase or decrease the setting value; Iii. Long press ▲ or ▼ on the display page for about 2.5 s to enter the setting page; Iv. long press ▲ or ▼ on the setting page for about 2.5 s to save the current setting and return to the display page 2. Description of module indicator light The module uses three LED lights to display its own working status, and the LED lights corresponding to various states of the module are shown in the following table:
