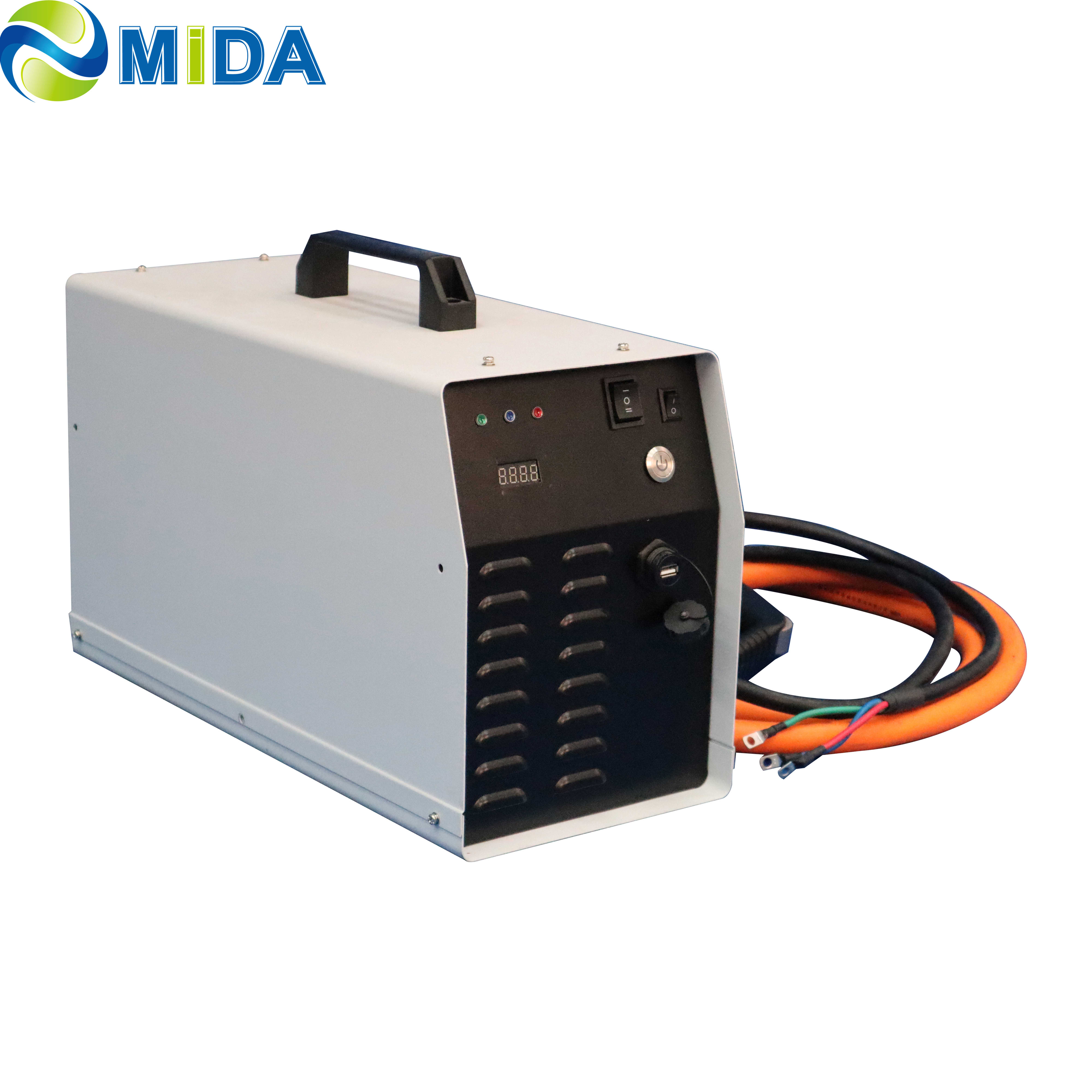

7KW CCS Type 1 Portable Fast DC Charger for Electric Vehicle CCS1 charger
7KW CCS Combo 1 fast DC charger
Our CHR-7 series Mini Fast DC charger for electric car is the ideal final solution for frequently use your EV in one day.It can make your EV
run more than 500 miles range by charging sereral times, and each times just need within 1 hour.This fast charger available in most industial
facilities by AC power sockets(380V,3 phase).This device can let your EV from 30% SOC to 80% SOC in 30 min.This portable with wheels
cabinet can be on board and no need install and commissioning,Just press some screen soft botton then can start to work.When the SOC get
80% around, then it will be stop automatically.And the Tesla adapter is an optional accessary then by use this device can let your tesla EV get
high speed charging from the CHAdeMO charger.Our fast charger is very suitable for comercial and private family applications: firms,dealer
workshops,car-sharing bases or car rental company, e-taxi company,
| model | CHR-7 | |||||||
| input voltage | 110/220VAC ±15% VAC,1ΦL+N+PE | |||||||
| input frequency | 50/60Hz±10% | |||||||
| input power factor | ≥0.95 | |||||||
| input THD current | ≤5% | |||||||
| support battery | LiFePO4,li-ion,Lead acid etc | |||||||
| output voltage | 50-500VDC | |||||||
| output power | 7kW | |||||||
| output current | 0-26A | |||||||
| output voltage accuracy | ±0.1% | |||||||
| output current accuracy | ±0.1% | |||||||
| output ground protection | support | |||||||
| HMI and command unit | 3.2′ LCD touch display | |||||||
| emergency stop | support | |||||||
| overall efficiency | 93% | |||||||
| support protocol | GB,CHAdeMO,CCs,Tesla etc | |||||||
| parallel operation | support parallel operation | |||||||
| insulation test | Input&Output to Ground 1500V,Control Circuit to Ground 500V | |||||||
| protection degree | IP23 indoor / IP55 outdoor | |||||||
| overall weight | 16kg | |||||||
| Dimension | 300X300X260mm | |||||||
Thank you for interested in our products. Our company focuses on the field of new energy electric
vehicle charging and is committed to providing customers with excellent charging equipment and complete
charging operation solutions.
The DC charging station is available with both a CCS or CHAdeMO version (Detachable so you can have both), it can charge any DC compatible EV on the market. With a compact design and low weight, the DC charger allows commercial fleet operators to improve their charging speeds or turn any 3-phase outlet into a DC Charger!
The DC Quick charging station offers Electric Vehicle owners an opportunity to charge their car safely and quickly.
The electric vehicle DC charger developed and produced by our company has advanced functions, stable
performance, wide application of use, strong practicability, mature charging station construction and
operation solutions, and has a good reputation in the industry.
