1 Product Introduction

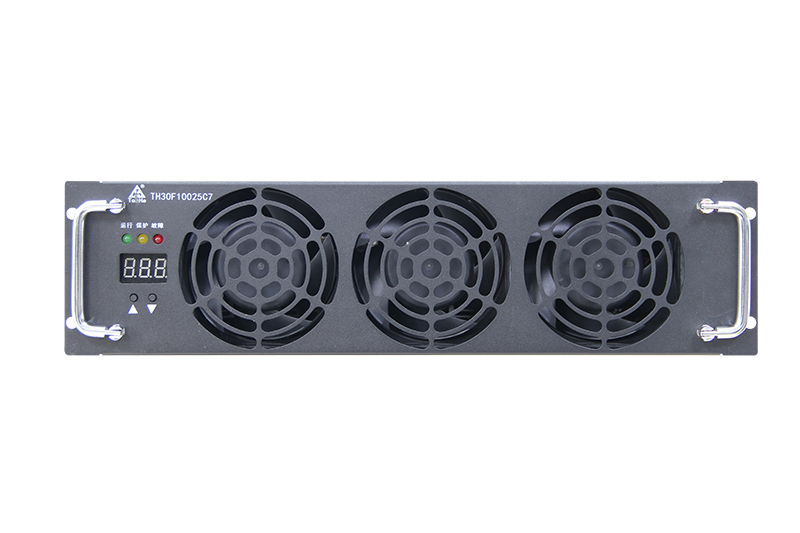

TH30F10025C7 is specially developed by MIDA , which is AC/DC module with
high efficiency and high power density. This product is three-phase four-wire
system (three phase+PE) input, supporting 285VAC-475VAC voltage input with
max power 30KW(constant 250-1000V). The charging module communicates
with main monitor through CAN bus.
* This product should be placed in an area far away from liquid, and it is prohibited to
install it under the water leakage positions such as air conditioning ports, vents, and
outlet windows of computer room, so as to prevent short circuit caused by liquid
entering the equipment and ensure that there is no condensation in the equipment.
* The use of charging module (pile) should meet the environmental regulations in
relevant national standards, and the outdoor protection level in general environment
should reach above IP54 -Avoid using in offshore environment or outdoor land near
pollution sources and in environment with only simple shelter, otherwise, it will easily
lead to product failure, and the resulting module failure is not covered by warranty.
Pollution sources include but are not limited to the following aspects:
* * 4 km radius from high salinity (such as ocean)
* * It is 3km away from heavy pollution sources such as metallurgy, coal mine,
thermal power plant, chemical industry, rubber and electroplating.
* * 1km away from light pollution sources such as food, leather and heating stove
* avoid using in the surrounding corrosive and insulating material environment,
otherwise it will easily lead to product failure, and the resulting module failure is not
covered by the warranty. * use altitude within 2000m, more than 2000m need derating
* Please avoid installing and using this equipment in gas stations, gas stations and
other places that require safety and explosion protection for electrical equipment.
* Special users should put forward when ordering to ensure that this product can
work reliably.
