Quick Answer

A split (separated) DC charging architecture separates power conversion from the parking bay: one centralized 480 kW power cabinet — the “stack” — feeds multiple slim liquid-cooled dispensers through dynamic power sharing. One stack typically powers 4–8 dispensers, and hub configurations scale to 16 stalls. When paired with a battery energy storage system (BESS), a 480 kW stack plus 500–800 kWh of storage can run 8–16 stalls on a 250–400 kVA grid connection, cutting transformer capex, demand charges, and cable trenching simultaneously. This article covers how split architecture works, how to couple it with BESS (AC- vs DC-coupled), how to size the combination, and the load-management stack — OCPP 2.0.1, ISO 15118 — that makes it profitable.

Key Takeaways

• One 480 kW split stack powers 4–8 dispensers with dynamic power sharing; up to 16 stalls in multi-stack hub configurations.
• Liquid cooling and centralized modules push sustained availability above 98.5% and cut service visits by consolidating maintenance in one cabinet.
• BESS buffering lets a 480 kW system run on a 250–400 kVA grid feed, cutting demand charges 30–50% and deferring transformer upgrades.
• Sizing rule: 0.5–0.8 kWh of storage per kW of stack power for hub applications, with PCS power matched to the stack’s peak output.
• OCPP 2.0.1 + ISO 15118 (Plug & Charge) are the integration backbone for site-wide load management, billing, and future V2G.

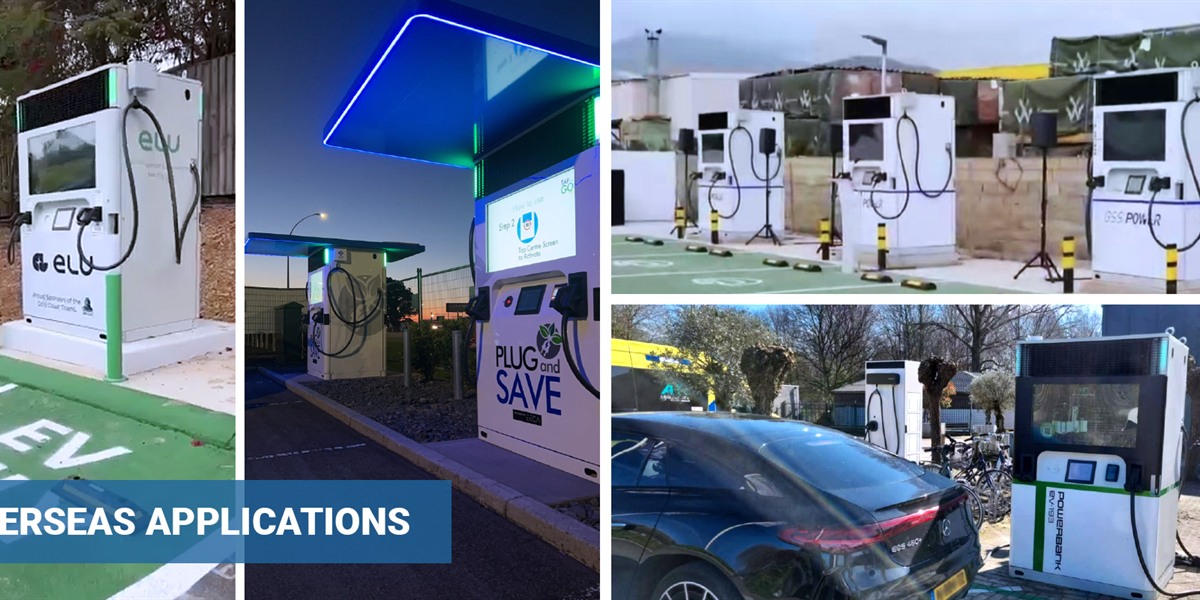

Why Split Architecture Is Winning Highway and Hub Deployments

All-in-one chargers — where the power cabinet and dispenser share one enclosure — dominated the first wave of DC infrastructure because they are simple to install one at a time. They break down at hub scale. Each unit carries its own cooling, its own metering, and its own service point; the heavy, hot equipment sits in the parking bay where drivers interact with it; and scaling from 4 to 8 stalls means duplicating entire cabinets plus transformer capacity.

Split architecture inverts the design. The power electronics live in a centralized cabinet placed in a utility area — away from parking, away from customers, away from weather exposure. Only a slim, quiet, liquid-cooled dispenser sits at the bay, holding the cable, connector, display, and control electronics. The benefits compound at scale:

• Less bay space per stall — dispensers take roughly half the footprint of an all-in-one unit, improving stall density in premium locations.
• Shorter, lighter cables — liquid-cooled cables carry up to 600A in a slim profile drivers can handle.
• Centralized service — one technician services the stack; dispenser faults are resolved remotely or by swapping a module.
• Graceful degradation — if one 40 kW module fails, the stack keeps delivering reduced power instead of taking a stall offline.

How a 480 kW Split Stack Works

A 480 kW stack is built from twelve 40 kW modules (or eight 60 kW modules) in a single cabinet, managed by a power-sharing controller. The controller reads each dispenser’s demand in real time and allocates power dynamically: one vehicle can draw the full 480 kW (or 600 kW in burst configurations), four vehicles can draw 120 kW each, or eight can draw 60 kW each. This “any power to any port” flexibility is what makes the stack attractive for mixed traffic — passenger EVs, vans, and heavy trucks arriving together.

MIDA’s split systems use the same 40kW and 60kW liquid-cooled power modules across the product line, so a hub operator carries one spares pool for the entire network. Modules are hot-swappable: a technician replaces a failed module in minutes without taking the station offline. The 800V–1000V output range covers 400V legacy vehicles and 800V architectures, and supports the 1000V systems coming with next-generation truck platforms.

BESS Integration: AC-Coupled vs. DC-Coupled

Adding storage to a split system is the single highest-leverage upgrade a hub operator can make, because the grid connection — not the charger — is usually the binding constraint. Two topologies are standard:

AC-coupled (recommended for retrofits). The BESS connects to the AC bus between the transformer and the stack. It is fully independent of the charger hardware: the EMS decides when to charge the battery (off-peak) and when to discharge into the hub (during sessions). Retrofitting is straightforward because the stack is untouched.

DC-coupled (best for new builds). The BESS shares a DC bus with the stack’s modules, eliminating one AC/DC conversion stage and lifting round-trip efficiency by 1.5–2.5 points. DC coupling also enables direct solar integration on the same bus. The trade-off is tighter engineering integration, which is why it suits new hubs designed as one system.

In both cases, the BESS acts as a grid buffer: it absorbs the difference between the site’s grid permit (e.g., 400 kVA) and the stack’s 480 kW output (plus building loads), and recharges overnight or during low-traffic windows. Operators using this configuration report covering 80–90% of charging events without touching the grid peak.

Designing the Hub: From Grid to Dispenser

A high-traffic hub is a system, not a collection of parts. The design sequence matters:

1. Grid permit and transformer — Size the connection to average demand, not peak; the BESS covers the peaks.
2. Power distribution — LV switchgear, metering, and protection sized for stack + BESS + site loads.
3. Power cabinets — 1–3 × 480 kW stacks in a utility area with clearance for cooling and service.
4. BESS container — 500 kWh–1.5 MWh, liquid-cooled, with fire suppression, within 50 m of the stacks.
5. Dispenser rows — 4–16 liquid-cooled dispensers, positioned for cable reach and traffic flow.
6. EMS + network — One platform controlling stacks, dispensers, battery, and building loads via OCPP 2.0.1.

Sizing the Combined System

The rules that hold in practice: energy (kWh) must cover the busiest hour; PCS power must cover the gap between peak demand and grid capacity; and BESS power should never bottleneck the stack — a 480 kW stack wants at least a 400 kW PCS.

Load Management and Protocols

A hub’s profitability depends on how well the software coordinates hardware. The modern stack runs three layers:

• Dynamic power sharing — the stack controller distributes its 480 kW according to live demand curves and session priorities.
• Dynamic load management (DLM) — the EMS limits total site import to the grid permit, balancing chargers, battery, HVAC, and lighting.
• Grid-aware charging — ISO 15118 enables Plug & Charge and, increasingly, scheduled charging that aligns sessions with tariff windows and solar availability.

OCPP 2.0.1 is the non-negotiable backbone: it carries transaction data, smart-charging commands, and device management across the fleet, so the hub integrates with any charging network operator (CPO) backend, e-mobility service provider (eMSP), and energy platform. For highway corridors in particular, the 480kW ultra-fast liquid-cooled DC charging architecture combined with storage has become the reference design for delivering megawatt-class throughput without waiting on utility upgrades.

ROI of the Combined System

For a highway hub with 8 stalls and 480 kW of stack power, the combined economics look like this:

• Transformer/feeder upgrade deferred: $80k–$250k avoided (or 12–18 months of revenue pulled forward).
• Demand charges cut 30–50%: $2,000–$6,000/month saved on typical commercial tariffs.
• Utilization lift: buffered power means fewer stalled sessions during rush peaks — often +10–20% throughput.
• Payback: the BESS increment typically pays back in 3–5 years on demand savings alone; grid-service revenue can shorten it to 2.5–4 years.

The stack itself pays back through utilization: dynamic sharing keeps all ports busy at high average power, and centralized maintenance keeps availability above 98.5%. MIDA Power’s commercial charging solutions deliver the full chain — split stacks, liquid-cooled ultra-fast stations, BESS integration, and the EMS/OCPP layer — so the hub is engineered as one accountable system rather than assembled from mismatched vendors.

FAQ

1. What exactly is a split DC charging stack? A split system separates the power electronics from the dispenser: a centralized cabinet (the stack, e.g., 480 kW) contains the power modules and cooling, while slim liquid-cooled dispensers at each parking bay carry only the cable, connector, and user interface. One stack feeds multiple dispensers with dynamic power sharing.

2. How many vehicles can a 480kW stack charge simultaneously? A 480 kW stack typically feeds 4–8 dispensers simultaneously. With dynamic power sharing, one vehicle can draw the full 480 kW, four can draw 120 kW each, or eight can draw 60 kW each — power is allocated live according to demand.

3. Why add a BESS to a split charging system? The BESS decouples charging power from grid capacity. It charges off-peak and discharges during sessions, so a 480 kW system can run on a 250–400 kVA grid feed. This cuts demand charges 30–50%, defers transformer upgrades, and covers grid outages.

4. AC-coupled or DC-coupled BESS — which should I choose? AC-coupled is simpler and ideal for retrofits — the BESS connects at the AC bus without touching the chargers. DC-coupled is more efficient (1.5–2.5 points better round-trip) and suits new builds, especially with solar on the same DC bus. Choose by project type and solar plans.

5. What protocols do I need for a smart hub? OCPP 2.0.1 for charger-to-backend communication and load management, ISO 15118 for Plug & Charge and bidirectional readiness, and Modbus/energy protocols for the BESS and EMS. All three must interoperate through one site controller.

6. Can the system support 800V and 1000V vehicles? Yes. The 40/60 kW modules in MIDA’s stacks cover 400V legacy vehicles, 800V passenger EVs, and 1000V truck platforms, with liquid-cooled cables rated up to 600A for ultra-fast sessions.

7. What happens if a power module fails? The stack degrades gracefully — remaining modules continue delivering power — and the failed 40/60 kW module is hot-swapped in minutes from a common spares pool. Because modules are shared across the entire MIDA product line, hub operators stock one module type for all sites.
