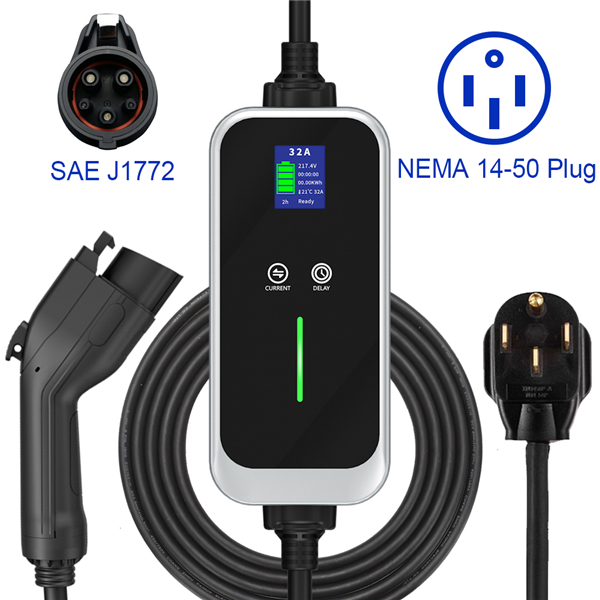

16A / 24A / 32A/40A Type1 Portable EV Charger with NEMA 14-50 plug level 2 EV Charging supplier

Short Description:

Rated current: 16A / 24A / 32A/40A ( Optional )

Operating voltage: 110V~250V AC

Delay Charging: 1-12Hour

Insulation resisitance:>1000MΩ
Therminal temperature rise:<50K
Withstand voltage:2000V
Working temperature: -30°C ~+50°C
Contact impedance: 0.5m Max

Send email to us

Product Detail

Product Tags

Rated current: 16A / 24A / 32A/40A ( Optional )

Operating voltage: 110V~250V AC

Delay Charging: 1-12Hour

EV Charging Box	IEC 62752 , IEC 61851 Standard
Power Plug	Type 1/ Type 2
Rate Current	6A ,8A ,10A ,13A(3Pin UK plug) 3.2KW
Rate Current	6A ,8A ,10A ,13A,16A (EU Schuko plug) 3.6KW
Rate Current	10A ,16A ,20A ,24A,32A (Blue 3pin CEE plug) 7.2KW
Input Voltage	220V/50Hz
Waterproof Rating	IP67
Operating Temperature	-25°C ~ +55°C
Storage Temperature	-40°C ~ +80°C
LCD Display	Temperature, Charging Time, Actual Current, Actual Voltage, Actual Charging Power Delay Time
New Function	Delayed Charging (1~12)+ Current Switching
Control Box Dimensions	220mm (L) X 100mm (W) X 56mm (H)
Cable Length	5 Meter
Certification	TUV,CE ,UKCA,FCC Certificate
Protection	1.Leakage Current Protection 2. Over Current Protection 3.Over Voltage Protection 4. Under Voltage Protection 5.Over Temperature Protection 6. Low Temperature Protection 7.Short Circuit Protection 8. Surge Protection 9.Overload Protection (self-checking recover)

The Type 1 Portable EV Charger with NEMA 14-50 Plug is compatible with all types of electric vehicles, making it a versatile charging solution for both personal and commercial use. It is also equipped with the latest safety measures such as over-current, over-voltage and short-circuit protection to ensure safe and efficient charging of your electric vehicle.

At Shanghai Mida Electric Vehicle Co., Ltd., we understand your needs, which is why we offer NEMA 14-50 plugs for this charger. That's because we want you to have the flexibility to charge your electric vehicle anywhere, even if you're traveling outside.
