DCDC Bidirectional Module DC Charging Module

Short Description:

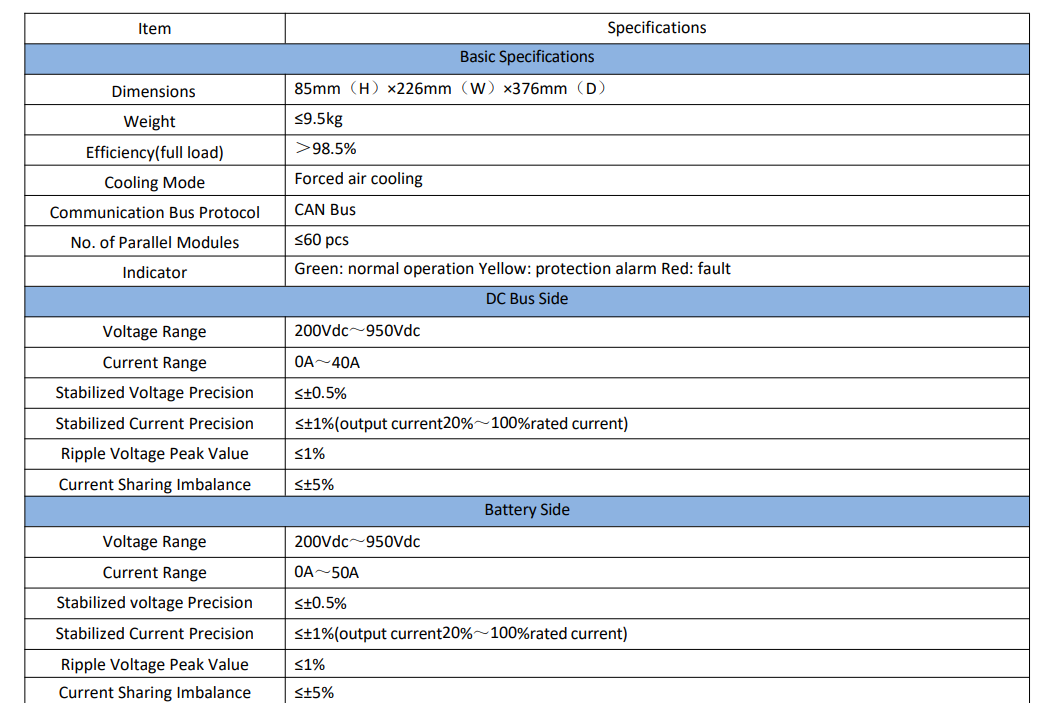

Dimensions：85mm（H）×226mm（W）×376mm（D）

Weight：≤9.5kg

Efficiency(full load)：＞98.5%

Cooling Mode: Forced air cooling

Communication Bus Protocol: CAN bus

No. of Parallel Modules: ≤60 pcs

Indicator:Green: normal operation Yellow: protection alarm Red: fault

Send email to us

Product Detail

Product Tags

DCDC Bidirectional Module DC Charging Module

MD95050Bis a high-frequency isolated bi-directional Dc-Dc module with core advantageousperformance such as ultra-wide voltage range, ultra-high full-load operating temperature and ultra-highefficiency.The strong protection and high power density are also the main features of the moduleMD95050B can be widely used in interaction between Dc bus side and battery side, such as energy storage,PV, ESS and charging, battery cascade utilization, data center and other multi-energy complementaryscenarios.
