MIDA 480kW 800kW 1220kW Scalable Cabinet Design Split-Type DC Charging Station for Highway Fleet Charging

Short Description:

A scalable cabinet design rated at 480kW, 800kW and 1220kW, where the enclosure reserves space for modules the site has not needed yet. Highway fleet charging rarely grows in one step, so this split-type station lets a forecourt open at the lower rating, add capacity in the same footprint, and keep dispenser positions unchanged through every phase of the build.

Send email to us

Product Detail

Product Tags

MIDA 480kW 800kW 1220kW scalable cabinet design split-type DC charging station at a highway fleet charging bay

Start at 480kW, Grow Into 1220kW

Most highway sites are funded in phases and built once. A scalable cabinet design accepts that by reserving busbar, cooling and slot space for modules that arrive later, so the 480kW opening day and the 1220kW third phase use the same enclosure and the same cable routes. Nothing is repositioned, and no second supply application is filed. The 800kW step in between keeps the intermediate phase honest rather than over-building early. Planners comparing this to a stacked-cabinet approach usually review 600kW 720kW OCPP CCS2 split DC charging system, 360kW 480kW 600kW split-type DC charging system and 480kW 800kW split-type ultra-fast DC charger first.

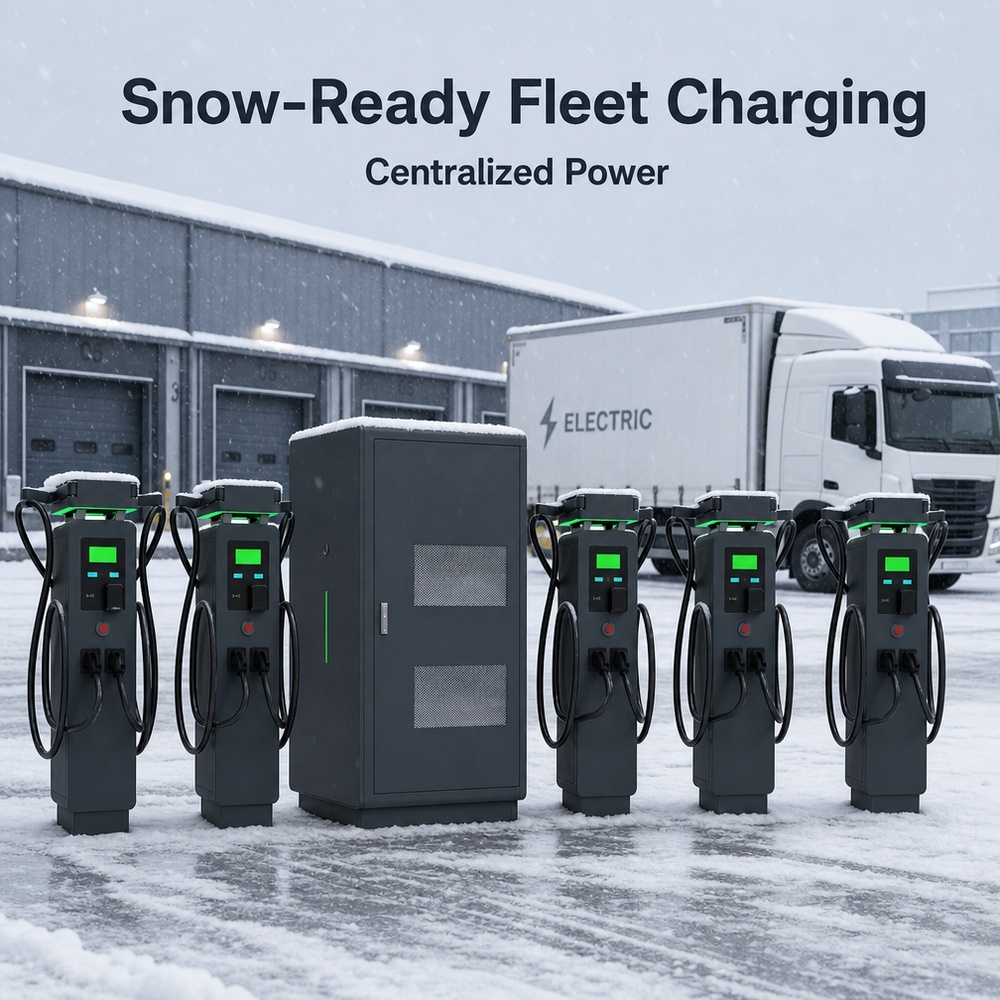

MIDA 480kW 800kW 1220kW scalable cabinet design split-type DC charging station cabinet layout at a highway fleet charging area

Footprint Decided Once, Capacity Decided Later

Forecourt land is the constraint nobody budgets for twice. Fixing the cabinet footprint at the start and treating capacity as a module decision means the concrete, the duct bank and the dispenser bases are poured once. It also means a site can be re-rated after a corridor study without civil work, which is the difference between following demand and chasing it. Owners writing a phased tender often anchor the language on 720kW 800kW liquid-cooled split DC fast charger, 600kW 960kW commercial split DC fast charging station and 720kW 960kW dynamic load balancing split DC charger to describe the growth path.
