MIDA 480kW 800kW 1220kW Scalable Cabinet Design Split-Type DC Charging Station for Port Logistics Charging

Short Description:

Rated at 480kW, 800kW and 1220kW on a scalable cabinet design that matches phased port funding. The same enclosure starts small, accepts modules as berths are energised, and reaches full rating without a new trench, because cooling and busbars are specified for the final size on day one. Each phase buys only the modules it needs.

Send email to us

Product Detail

Product Tags

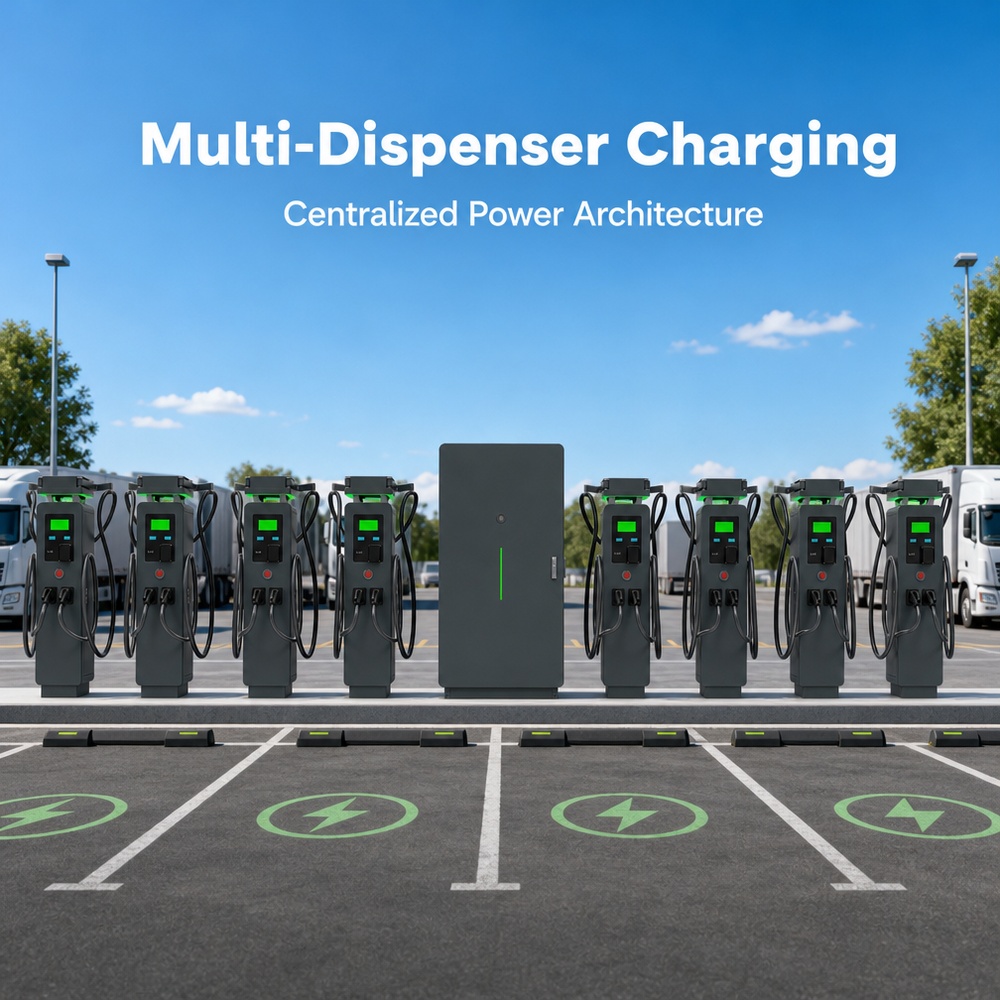

MIDA 480kW 800kW 1220kW scalable cabinet design split-type DC charging station at a port logistics charging bay

A Cabinet That Starts at 480kW

Port charging is usually funded in phases, and a scalable cabinet design matches that reality: the same enclosure starts at 480kW, accepts modules up to 800kW, and reaches 1220kW when the second berth is energised. Nothing is thrown away between phases, and the protection devices, metering and communications are bought once. Terminal engineers compare a 600kW 800kW split-type DC fast charger power cabinet, a 600kW 720kW 800kW dispenser DC charging stack and a 480kW 600kW 800kW CCS2 liquid-cooled split DC station on how the upgrade is actually performed.

MIDA 480kW 800kW 1220kW scalable cabinet design split-type DC charging station cabinet layout at a port logistics charging yard

1220kW Without Rewiring the Yard

The expensive part of a port upgrade is civil work, not electronics. Adding modules inside the existing cabinet keeps the trench, the duct bank and the fence-line position unchanged, so a 1220kW envelope arrives without closing a lane for weeks. Cooling and busbar ratings are specified for the final size from day one, which is why the intermediate steps stay safe. Budget holders review a 1000kW 1200kW liquid-cooled split EV charger, a 700kW 1500kW GB/T CCS2 split DC charging hub, a 720kW 900kW CCS2 GB/T split DC charging systems and a 360kW 600kW 800kW OCPP CCS2 modular split DC station.
