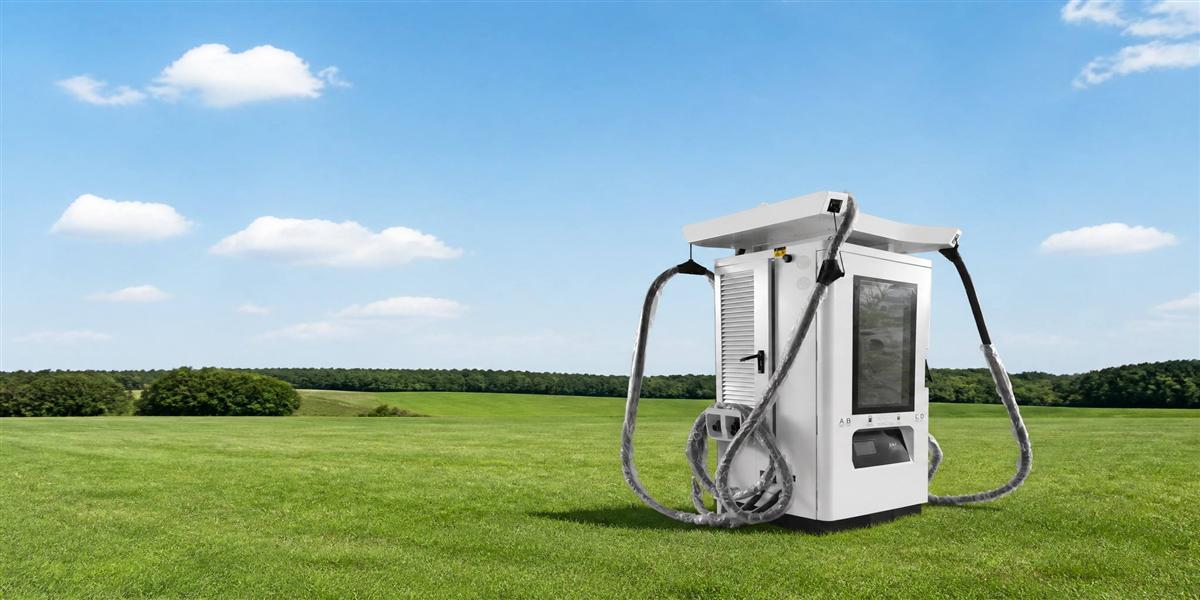

Reliable Commercial Charging: MIDA 240kW Quad Output DC Charger for Fleet Operators
Quick Answer
The MIDA 240kW quad output DC charger is the reliability-first building block for commercial fleet charging: four independent charging guns share one 240kW cabinet, letting a depot charge up to four vans, box trucks, or passenger EVs simultaneously from a single grid connection. Its modular, liquid-cooled power stage delivers the two properties fleet operators need most — high uptime and predictable service cost. Hot-swappable 40kW/60kW modules mean a failed module is replaced in under 30 minutes while the remaining guns keep charging; remote diagnostics over OCPP 1.6J/2.0.1 identify failures before the technician arrives. With a 200–1000V wide-voltage range, CCS1/CCS2/NACS connector options, and TUV/CE/UL certification, the station serves mixed fleets of vans, light trucks, and sedans at their optimal charging rates. For fleet operators, the 240kW quad output charger minimizes total cost of ownership while maximizing the number of vehicles that return to service each morning.
Key Takeaways
- Quad output topology lets one 240kW grid connection serve four vehicles in parallel — ideal for van, light-truck, and mixed passenger fleets with staggered shift schedules.
- Modular liquid-cooled power stages with hot-swap capability keep the station charging through maintenance events, protecting fleet dispatch readiness.
- The 200–1000V voltage range charges 400V delivery vans and 800V light trucks at their full acceptance rates from one cabinet.
- OCPP 1.6J/2.0.1 with per-gun control enables scheduled charging, load capping, and per-vehicle energy attribution through the fleet’s existing software.
- At 240kW, the station matches the duty cycle of commercial fleets — shorter sessions than Level 2, lower grid demand than megawatt depot systems — at the lowest cost per vehicle per day.
What “Reliable” Means in Fleet Charging
Fleet operators do not buy charging infrastructure for the same reasons as public CPOs. A CPO monetizes throughput; a fleet operator monetizes dispatch. Every vehicle that is not charged and ready at departure time is a missed route, a rescheduled delivery, or a rental vehicle hired at short notice. Reliability, in fleet terms, is therefore defined by a single outcome: the number of vehicles that depart on schedule every day. Everything else — charge speed, efficiency, connectivity — is subordinate to that.
This changes the hardware calculus in three ways. First, redundancy matters more than headline power: a station that degrades gracefully is worth more than one that is faster but fails hard. Second, serviceability is a design requirement: maintenance must be fast, cheap, and predictable, because a depot cannot spare a charging bay for days while a technician waits on parts. Third, the charger must match the fleet’s duty cycle — sized so that vehicles are charged within their available windows without overbuilding capacity the fleet will never use.
Right-Sizing: Why 240kW Fits Commercial Fleets
Commercial fleet vehicles — delivery vans, light box trucks, last-mile vehicles, and shared passenger fleets — have very different charging profiles than line-haul Class 8 trucks or highway passenger EVs. A typical electric delivery van holds 60–110kWh and returns to the depot with 20–40% state of charge, needing 40–80kWh before the next dispatch. At 60–120kW per gun, a 240kW quad output station restores that energy in 30–70 minutes — easily fitting between shifts or during an overnight window.
| Fleet Segment | Typical Battery | Session Need | Gun Power on 240kW Station | Time to Full |
|---|---|---|---|---|
| Last-mile delivery vans | 60–110kWh | 40–80kWh | 60–80kW | 35–70 min |
| Light box trucks | 100–200kWh | 80–140kWh | 80–120kW | 45–90 min |
| Passenger fleet (sedans/SUVs) | 60–100kWh | 40–70kWh | 60–80kW | 35–60 min |
Because four guns operate in parallel, the station serves the fleet’s arrival waves: a 12-vehicle van fleet with staggered shifts needs only three 240kW quad output stations to cover all vehicles between dispatch cycles — versus six dual-output or twelve single-output units for the same coverage.
The Uptime Architecture: Modularity as a Service Strategy
The MIDA 240kW quad output charger is engineered around a simple premise: a fleet charger must not create a single point of failure for four vehicles. Three design decisions deliver on that premise:
- Hot-swappable power modules. The power stage is built from MIDA’s 40kW/60kW liquid-cooling power modules. When a module fails, the station continues charging all four guns at reduced total power while the module is replaced on site in under 30 minutes — no factory return, no depot downtime for the other three vehicles.
- Liquid cooling instead of fan arrays. Fans are the highest-failure component in air-cooled chargers. Liquid-cooled modules run sealed against dust, humidity, and salt, with lower operating temperatures and a materially higher MTBF — critical in depot yards where diesel exhaust residue, dust, and wash-down water are the norm.
- Remote, module-level telemetry. OCPP 1.6J/2.0.1 exposes per-module temperatures, efficiencies, and run hours to the fleet’s charge management system, so maintenance is dispatched with the faulty module already identified. Predictive maintenance replaces reactive truck rolls.
The result is a station whose availability is measured in the high-90s percentage range across multi-year service contracts — the same reliability bar fleet operators hold their vehicles to.
Per-Gun Control: Scheduling That Fits Shift Patterns
Fleet charging is not a fire-and-forget operation; it is a schedule. The 240kW quad output charger gives the fleet’s software granular control over every session:
- Per-gun scheduling: OCPP 2.0.1 charging profiles let the fleet manager assign each gun a session window — the 06:00 dispatch wave starts charging at 22:00, the 14:00 wave at 09:00, and so on — without driver involvement.
- Site load capping: When the depot’s transformer is shared with other loads (HVAC, warehouse equipment), the CSMS caps the station’s total draw per gun, keeping the site under its grid permit without dropping sessions.
- Per-vehicle energy attribution: Each session’s metering binds to a vehicle ID, so energy consumption, cost, and carbon reporting are generated automatically per vehicle per day — the data fleet managers need for fuel-cost benchmarking against diesel.
This is the difference between a charger and a managed fleet asset: the hardware executes the dispatch plan, and the software proves the economics.
Vehicle Compatibility Across a Mixed Fleet
Few commercial fleets are single-platform. A typical operator runs vans from one OEM, box trucks from another, and sedans for staff — mixing 400V and 800V architectures, CCS2 and NACS connectors, and battery sizes from 60kWh to 200kWh. The 240kW quad output charger is built for that reality:
- 200–1000V output range: Every vehicle charges at its optimal rate. A 400V van draws full current at 400V; an 800V truck does the same at 800V — no derating, no wasted time.
- Connector options: CCS1, CCS2, and NACS configurations, mixed per station, so the depot’s connector layout matches its actual vehicle population rather than forcing adapters.
- Independent sessions: Each gun negotiates its own charging curve, so four different vehicles with four different requirements charge optimally at the same time.
For a fleet operator standardizing across depots, this means one charger model covers the entire portfolio — one training manual, one spare-parts kit, one service contract.
Total Cost of Ownership: The Fleet Math
The commercial case for the 240kW quad output charger is best expressed in TCO terms. Model a 10-vehicle last-mile fleet, each van needing ~60kWh per day, with staggered arrival waves:
| Cost Component | Level 2 AC per vehicle | Dual-output DC | 240kW Quad Output DC |
|---|---|---|---|
| Stations needed (10 vehicles) | 10 | 5 | 3 |
| Grid connection points | 10 (or costly cluster) | 5 | 3 |
| Vehicles charged per bay per day | 1–2 | 3–4 | 4–6 |
| Maintenance points | 10 | 5 | 3 |
| Session time for 60kWh | 4–6 hours | 30–60 min | 30–60 min (parallel) |
The quad output station cuts grid connection points and maintenance points by 70% versus Level 2 per-vehicle charging, while delivering DC-speed sessions that make between-shift charging practical — eliminating the “charge all night, hope it’s enough” risk of Level 2 fleet charging.
Built on the MIDA Commercial Platform
The 240kW quad output charger shares its engineering DNA with the rest of MIDA’s quad output family. It carries the same liquid-cooled module platform and OCPP 2.0.1 smart-grid capabilities as the MIDA 320kW 4-gun DC fast charger with OCPP 2.0.1, scaled down to the duty cycle commercial fleets actually need. Operators who deploy it alongside the MIDA 360kW quad output DC station for heavy-duty electric trucks can run van bays and truck bays from one management platform and one spare-parts inventory.
Where sites need more headroom, the MIDA 480kW ultra-fast charging system with quad connector support provides the next step up, and the all-weather variant — the MIDA 360kW 4-gun DC fast charger for all-weather use — extends the same reliability architecture to sites with extreme heat, cold, dust, or coastal humidity. Every station in the family ships with TUV/CE/UL certification, OCPP 1.6J/2.0.1, and the module-level telemetry that keeps fleet charging available, attributable, and costed — day after dispatch day.
FAQ
1. How many vehicles can a MIDA 240kW quad output charger charge at once?
Four vehicles simultaneously, each as an independent session. The station’s dynamic allocation can also concentrate more power on one gun when a vehicle needs a faster top-up.
2. Is 240kW enough for a commercial fleet?
For most van, light-truck, and passenger fleets, yes. A 60–110kWh van needs only 40–80kWh per daily session; at 60–120kW per gun, that is a 35–90 minute charge — well within typical between-shift or overnight windows.
3. What happens if a power module fails?
The station stays online at reduced total power across all four guns. A technician hot-swaps the failed module in under 30 minutes; no depot bay is lost to a multi-day repair.
4. Can the charger handle both 400V and 800V vehicles?
Yes. The 200–1000V output range charges 400V vans and 800V trucks at their full acceptance rates from the same cabinet, in the same session mix.
5. Which connectors are available for fleet depots?
CCS1, CCS2, and NACS, mixable per station, so the depot matches its vehicle population’s plug standard without adapters.
6. How does the fleet track energy per vehicle?
Each gun reports independent session data over OCPP 1.6J/2.0.1, and ISO 15118 Plug & Charge binds sessions to vehicle identity — giving automatic per-vehicle energy, cost, and carbon attribution.
7. Can the station be expanded as the fleet grows?
Yes. The quad output station is a modular building block: add another 240kW cabinet and guns as vehicle count grows, with the same CSMS, spare-parts kit, and service contract — no replacement of existing hardware.
